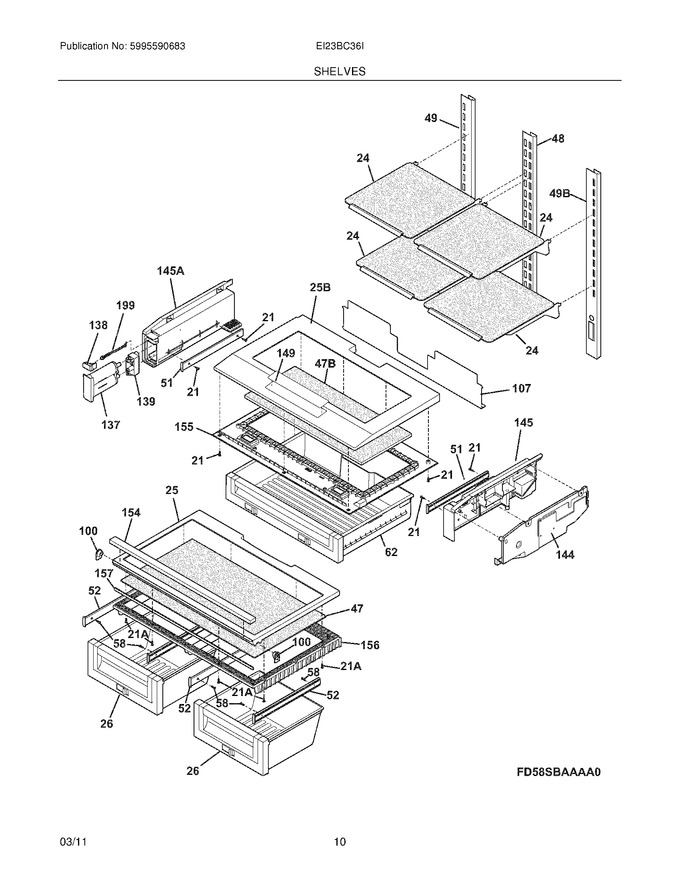

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 21 | 241953902 | Screw,no.8 - 18 X .380 ,3 |
|
Immediately | $ 19.01 | ||||
| 24 | 241839902 | Shelf-glass,formed |
|
$ 474.84 | |||||
| 25 | 241802205 | Frame-crisper Cover,upper (Replaces: 241802203) |
|
$ 132.30 | |||||
| 26 | 241772808 | Pan-crisper (Replaces: 241772804) |
|
$ 299.13 | |||||
| 47 | 241768802 | Glass-crisper Frame |
|
$ 85.95 | |||||
| 48 | 241774201 | Channel-shelf Mtg,center |
|
$ 43.73 | |||||
| 49 | 241773802 | Channel-shelf Mtg,side ,lh |
|
- | |||||
| 51 | 241816101 | Slide-deli |
|
$ 169.31 | |||||
| 52 | 241769002 | Slide-crisper Cover |
|
$ 133.09 | |||||
| 58 | 241941202 | Screw,8-18 X 3/8 |
|
$ 16.85 | |||||
| 62 | 241827207 | Pan-deli |
|
$ 296.36 | |||||
| 100 | 241768601 | Support-crspr Cover |
|
$ 21.26 | |||||
| 107 | 241925901 | Cover-water Tank |
|
$ 84.68 | |||||
| 137 | EWF01C | Filter,water ,carbon Cassette ,front ,with O`rings (Replaces: 241932301) |
|
Immediately | $ 75.59 | ||||
| 138 | 241885901 | Button-filter Release |
|
$ 31.50 | |||||
| 139 | 242058801 | Base-water Filter |
|
$ 53.87 | |||||
| 144 | 241803901 | Cover-deli Air Control |
|
- | |||||
| 145 | 241803801 | Housing-deli Air Control |
|
$ 120.02 | |||||
| 149 | 241974501 | Insert-pan Cover,plastic |
|
$ 57.79 | |||||
| 154 | 241879902 | Trim-crisper Cover |
|
$ 43.82 | |||||
| 155 | 241803403 | Frame-deli Cover,lower |
|
$ 164.59 | |||||
| 156 | 241872006 | Frame-crisper Cover,lower (Replaces: 241872004) |
|
$ 133.09 | |||||
| 157 | 241872201 | Beam-crisper Cover |
|
$ 59.83 | |||||
| 199 | 240397501 | Rod |
|
$ 55.57 | |||||
| 21A | 5304453707 | Screw,no.8-18 (Replaces: 241953901) |
|
Immediately | $ 17.69 | ||||
| 25B | 241803303 | Frame-deli Cover,upper |
|
$ 248.58 | |||||
| 47B | 241967401 | Glass,2 Pane Insulatd |
|
$ 250.43 | |||||
| 49B | 241774301 | Channel-shelf Mtg,side ,rh |
|
$ 43.05 | |||||
| F137 | 240527001 | O-ring,wtr Filter Base (Replaces: 240526901) |
|
$ 11.80 | |||||
| F139 | 241858401 | Screw,no.6 X 1/2 Hilo |
|
$ 13.05 | |||||
| F145 | 242058705 | Support,rail |
|
- | |||||
| F199 | 240398401 | Spring-filter Release Rod |
|
$ 65.73 | |||||
| F47B | 5304469950 | Sealant,rubber Silicone |
|
Immediately | $ 99.94 | ||||
| NI | 241809203 | Trim-shelf,hand Grip |
|
- | |||||
| NI | 240451503 | Screw,ind Hex Wshr Hd ,8-32 X 0.375 ,trilobe |
|
$ 4.21 | |||||
| NI | 242028527 | Energy Guide |
|
- |
