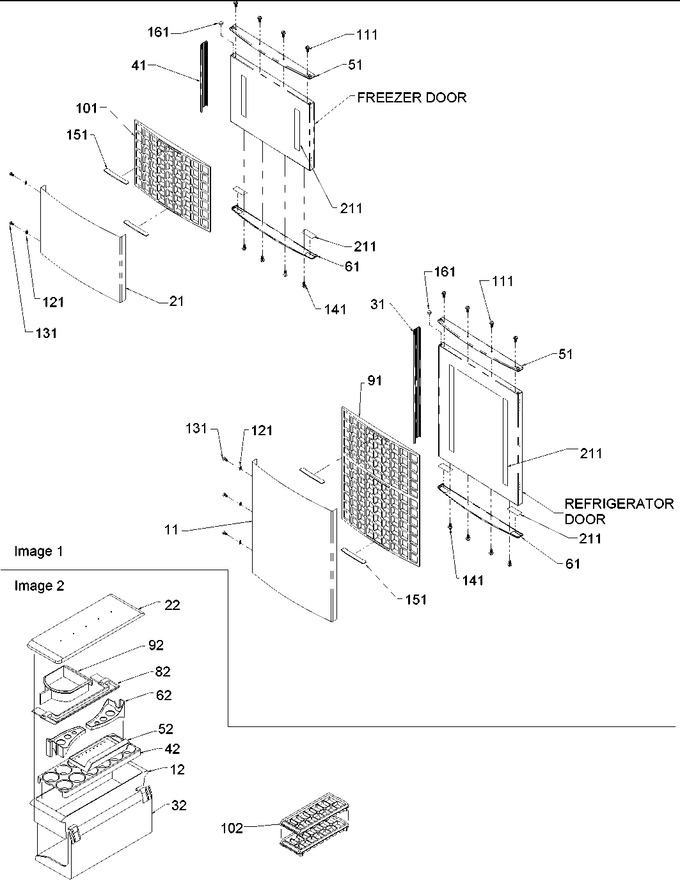

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12481133		Panel,contour Ref Dr(white)		Appelez-nous	-
12	10423129		Bin-utility		Appelez-nous	-
21	12481137		Panel,contour Fz Dr(white)		Appelez-nous	-
22	10436404		Lid, Utility				$ 60.85
31	12500707W		Handle,ref Dr(white)		Appelez-nous	-
32	10992303		Rack, Utility		Appelez-nous	-
41	12500708W		Handle,fz Dr(white)		Appelez-nous	-
42	10436506		Tray, Egg				$ 8.28
51	12503902W		Cap,top Door(white)		Appelez-nous	-
52	10310901		Tray, Butter		Appelez-nous	-
61	12503901W		Trim,bottom Dr(white)		Appelez-nous	-
62	12103905		Snugger, Door Shelf		Appelez-nous	-
82	10468004		Retainer, Tall Pkg		Appelez-nous	-
91	12507901		Spacer,cntour Ref Dr		Appelez-nous	-
92	10441102S		Hugger-bottle		Appelez-nous	-
101	12507902		Spacer,cntour Frz Dr		Appelez-nous	-
102	WP841180A		Ice Tray   (Replaces: D7725402)			Immediately	$ 47.84
111	M0229531		Screw, Sm (wht)		Appelez-nous	-
121	12315102		Clip, Extra Handle		Appelez-nous	-
131	WP489399		Screw, Se   (Replaces: M0232929)				$ 7.30
141	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
151	12510102		Support, Door Skin		Appelez-nous	-
161	12098902		Plug, Trim (wht)		Appelez-nous	-
211	R0195044		Tape, Adhesive 9 Ft Roll		Appelez-nous	-
