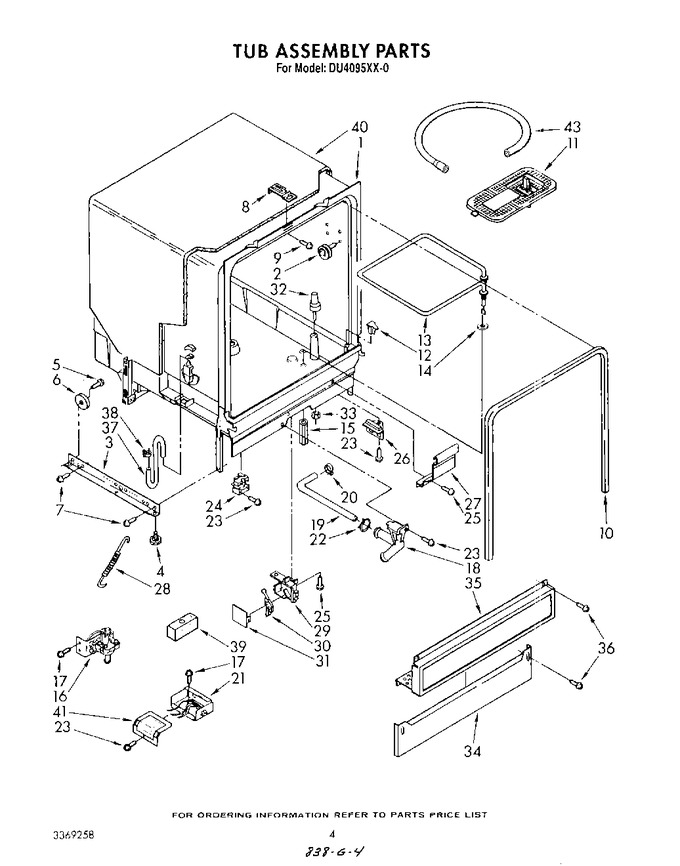

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Tub Assembly (not Serviceable)		Appelez-nous	-
2	3369078		Tub, Wheel Assembly (8)		Appelez-nous	-
3	3368932		Runner (2)		Appelez-nous	-
4	8193716		Leveler (2)   (Replaces: 302849)			Immediately	$ 88.96
5	3370389		Screw, Shoulder (2)				$ 5.70
6	302819		Wheel (2)				$ 5.65
7	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
8	3368965		Plate, Latch		Appelez-nous	-
9	3368919		Screw, 8-32		Appelez-nous	-
10	WPW10509257		Gasket   (Replaces: 3368994)			Immediately	$ 74.12
11	WP3369322		Grate   (Replaces: 3369002)				$ 99.06
12	WP8528862		Deflector (2)   (Replaces: 3369052)				$ 63.90
13	WPW10082894		Heater   (Replaces: 3369069)				$ 141.52
14	WP717273		Washer, Rubber (2)   (Replaces: 717273)			Immediately	$ 7.55
15	3369073		Nut (2) (heater Terminal)		Appelez-nous	-
16	3369868		Water Valve		Appelez-nous	-
17	WP489069		Screw 8-18 X 1/2   (Replaces: 304392)			Immediately	$ 8.40
18	3369421		Check, Valve Assembly		Appelez-nous	-
19	3369050		Hose, Coupler		Appelez-nous	-
20	3369082		Clamp		Appelez-nous	-
21	3369332		Terminal Block & Plug Assembly		Appelez-nous	-
22	3369327		Clamp		Appelez-nous	-
23	WP90767		Screw, 8 X 3/8   (Replaces: 90767)			Immediately	$ 8.25
24	W10102260		Relay   (Replaces: 3369063)				$ 143.07
25	WP304231		Screw, 8-18 X 1/2   (Replaces: 304231)			Immediately	$ 8.14
26	WP3368928		Fuse, Thermal   (Replaces: 3368928)			Immediately	$ 81.57
27	3368983		Shield, Harness		Appelez-nous	-
28	3369337		Spring & Bearing Assembly (2)		Appelez-nous	-
29	3369048		Housing, Float Switch				$ 46.38
30	3369067		Switch, Float		Appelez-nous	-
31	3369049		Cover, Switch Housing		Appelez-nous	-
32	WP8519552		Float   (Replaces: 3369072)				$ 124.92
33	717488		Nut				$ 12.83
34	3368942		Toe, Panel		Appelez-nous	-
35	3368936		Panel, Access		Appelez-nous	-
36	WP302868		Screw, 8-18 X 1/2 (4)   (Replaces: 302868)			Immediately	$ 8.18
37	3369070		Hose, Inlet		Appelez-nous	-
38	WP596669		Clamp   (Replaces: 301958)			Immediately	$ 8.82
39	3369317		Diverter		Appelez-nous	-
40	W11086533		Sound Shield   (Replaces: 3369329)			Immediately	$ 31.30
41	3369357		Cover Assembly, Terminal Box		Appelez-nous	-
43	675544		Hose, Drain   (Replaces: 304626)			Immediately	$ 155.51
