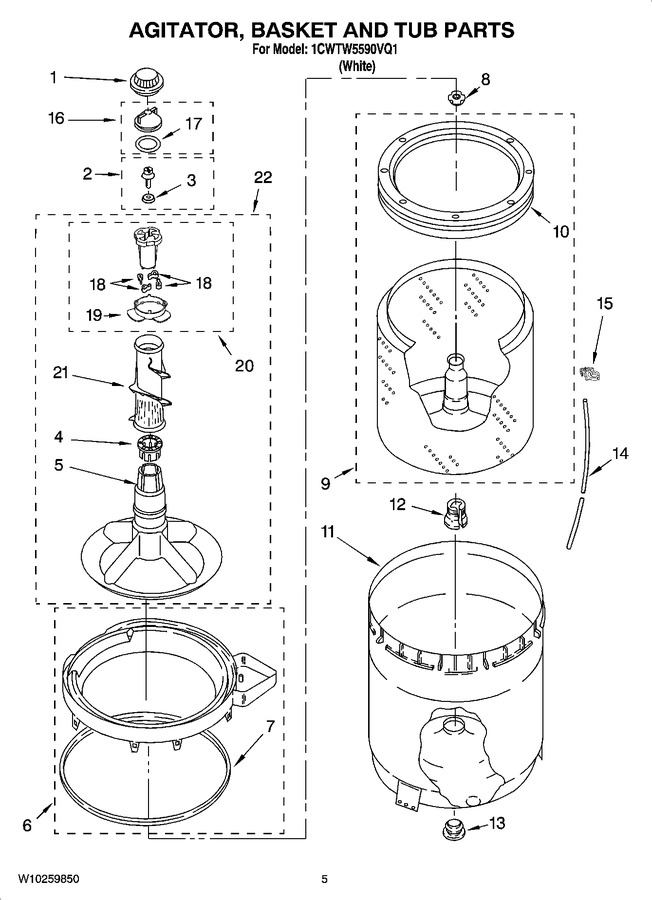

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3355758 | Cap, Agitator (Replaces: 3355758) |
|
Immediately | $ 9.00 | ||||
| 2 | WP358237 | Screw & Washer (Replaces: 358237) |
|
Immediately | $ 8.86 | ||||
| 3 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 11.09 | ||||
| 4 | 285587 | Spacer, Thrust (Replaces: 3350389) |
|
Immediately | $ 4.42 | ||||
| 5 | WP3347288 | Agitator (Replaces: 3347288) |
|
Immediately | $ 137.84 | ||||
| 6 | W10880720 | Tub Ring (Replaces: 8528150) |
|
Immediately | $ 222.23 | ||||
| 7 | WP3976308 | Gasket, Tub Ring (Replaces: 3976308) |
|
Immediately | $ 28.25 | ||||
| 8 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 8.89 | ||||
| 9 | W10389328 | Basket & Balance Ring (Replaces: 8526016) |
|
$ 404.58 | |||||
| 10 | WP387240 | Balance Ring (Replaces: 387240) |
|
Immediately | $ 182.05 | ||||
| 11 | 63849 | Tub |
|
$ 291.70 | |||||
| 12 | WP389140 | Block, Drive (Replaces: 389140) |
|
Immediately | $ 27.49 | ||||
| 13 | W10814296 | Gasket, Center Post (Replaces: 383727) |
|
Immediately | $ 9.18 | ||||
| 14 | WP353244 | Hose, Pressure Switch (Replaces: 3347780) |
|
Immediately | $ 59.93 | ||||
| 15 | 2219077 | Clip, Pressure Switch Hose |
|
$ 61.18 | |||||
| 16 | WPW10074580 | Cap, Barrier (Replaces: 3354733) |
|
Immediately | $ 12.40 | ||||
| 17 | WPW10072840 | Seal, Inner Cap (Replaces: W10072840) |
|
Immediately | $ 8.72 | ||||
| 18 | 80040 | Dog, Agitator (4) (Replaces: 3366877) |
|
Immediately | $ 3.64 | ||||
| 19 | WP3363661 | Bearing, Driven Cam (Replaces: 3363661) |
|
$ 7.84 | |||||
| 20 | 285811 | Cam Driven (Replaces: 3363663) |
|
Immediately | $ 32.59 | ||||
| 21 | WP3348752 | Clothes Mover (Replaces: 3348752) |
|
$ 245.21 | |||||
| 22 | 285565 | Agitator (complete) (Replaces: 3348117) |
|
Immediately | $ 259.89 |
