01 - Cover Sheet
02 - Cabinet Parts

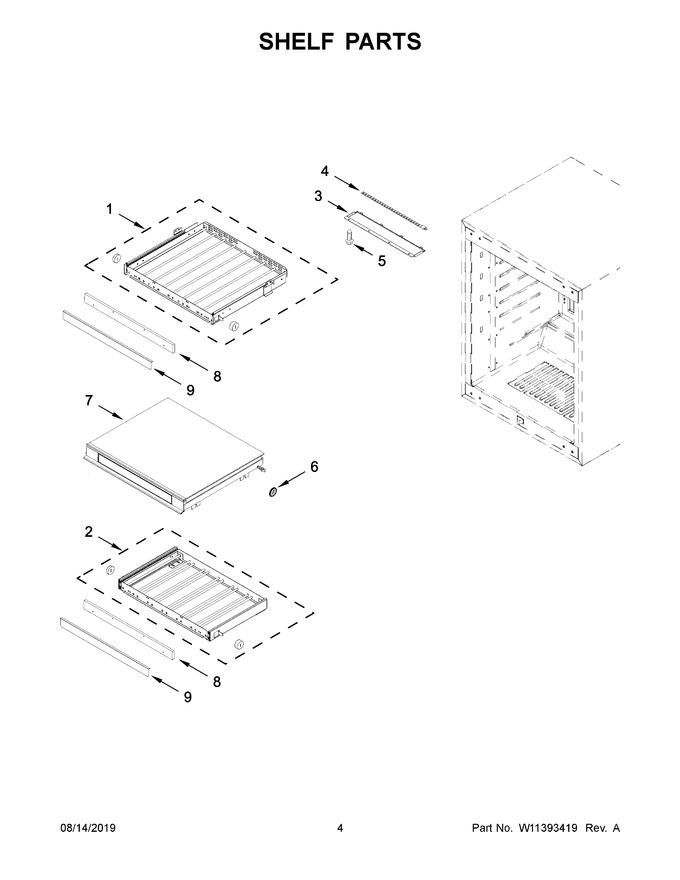

03 - Shelf Parts
04 - Door Parts
05 - Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10803968 | Top Wine Rack Assembly (right Hinge) |
|
$ 361.03 | |||||
| 2 | W10803971 | Wine Rack Assembly, Lower |
|
$ 361.12 | |||||
| 3 | W10622774 | Lens, Light |
|
$ 33.12 | |||||
| 4 | W11441723 | Led Light Bar (Replaces: W10797323) |
|
$ 294.65 | |||||
| 5 | W10319184 | Screw |
|
- | |||||
| 6 | W10621514 | Liner Bushing |
|
$ 31.71 | |||||
| 7 | W10808109 | Control Panel Assembly (Replaces: W10805715) |
|
$ 585.50 | |||||
| 8 | W11240776 | Stainless Trim (Replaces: W10803987) |
|
$ 134.07 | |||||
| 9 | W10803984 | Trim (wood) |
|
$ 135.46 | |||||
| 1A | W10803969 | Top Wine Rack Assembly (left Hinge) |
|
$ 360.82 |
