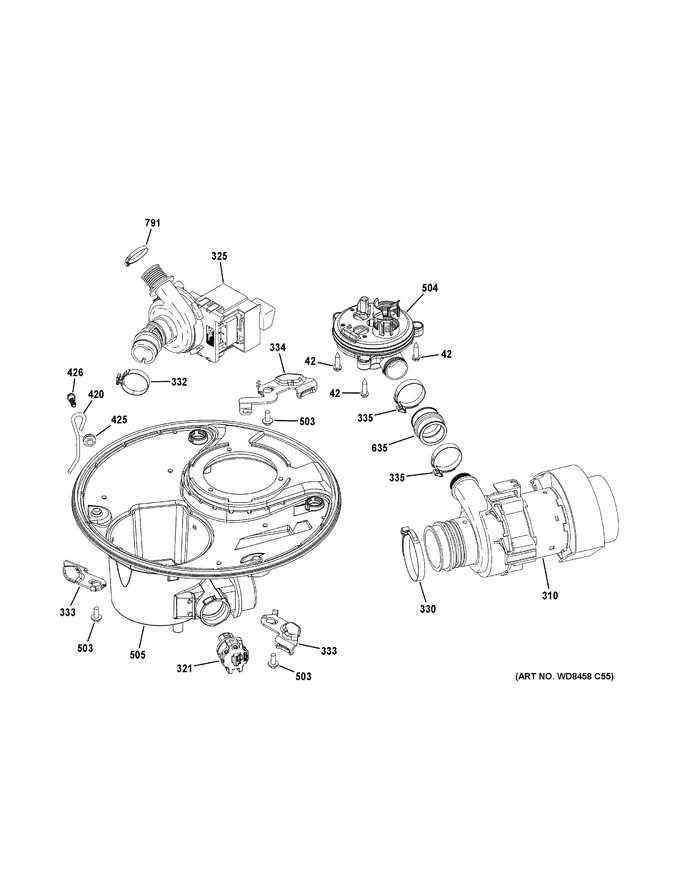

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 42 | WD02X22736 | Scr10 - 16 Ab Hxw 3/4 Ss |
|
- | |||||
| 310 | WD26X22826 | Pump Wash Main Asm |
|
- | |||||
| 321 | WD21X22830 | Sensor Turbidity Asm |
|
- | |||||
| 325 | WD19X24394 | Drain Pump Asm |
|
- | |||||
| 330 | WG04A01134 | Clamp (Replaces: WD01X10571) |
|
Immediately | $ 19.67 | ||||
| 332 | WD01X10573 | Clamp |
|
- | |||||
| 333 | WD01X10632 | Latch Cam |
|
- | |||||
| 334 | WD01X10575 | Latch Cam |
|
- | |||||
| 335 | WD01X10572 | Clamp |
|
- | |||||
| 420 | WD01X10579 | Hanger Drain Pump |
|
- | |||||
| 425 | WD01X10101 | Grommet |
|
- | |||||
| 426 | WD02X22781 | Scr 10-18 X 5/8 |
|
- | |||||
| 503 | WB01T10103 | Scr 10-16 Ab Hxw .532 |
|
- | |||||
| 504 | WD18X23220 | Diverter Passive Asm |
|
- | |||||
| 505 | WD18X22782 | Sump Manifold |
|
- | |||||
| 635 | WD24X22601 | Hose Wash Pump Outlet |
|
- | |||||
| 791 | WD01X24246 | Clamp |
|
- |
