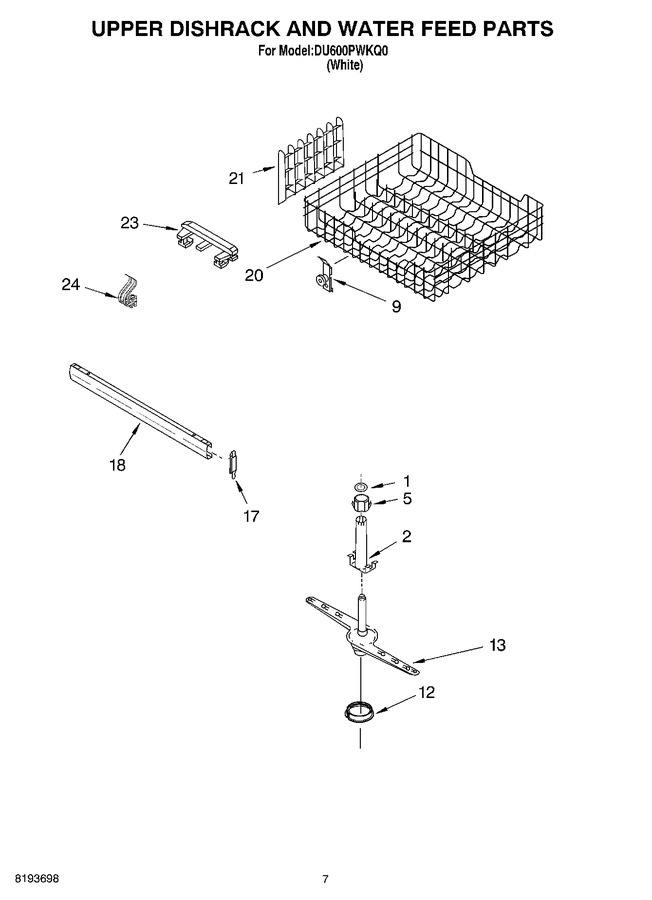

01 - Frame And Console, Literature
02 - Inner Door
03 - Tub Assembly
04 - Pump And Motor
05 - Upper Dishrack And Water Feed
06 - Lower Dishrack
07 - Miscellaneous, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 303722 | Clip |
|
$ 5.75 | |||||
| 2 | 8268838 | Support, Arm (also Order Items 1 & 5) |
|
- | |||||
| 5 | 8268871 | Support Lock, Spray Arm |
|
$ 5.65 | |||||
| 9 | WPW10204131 | Wheel Assembly (Replaces: 8268852) |
|
Immediately | $ 9.16 | ||||
| 12 | WP3376846 | Seal, Sprayarm (Replaces: 3376846) |
|
Immediately | $ 10.12 | ||||
| 13 | 8268829 | Sprayarm, Upper (also Order Items 1 & 5) |
|
$ 42.16 | |||||
| 17 | 3379941 | Stop, Track |
|
$ 42.08 | |||||
| 18 | WP3385089 | Track, Dishrack (Replaces: 3385089) |
|
Immediately | $ 80.00 | ||||
| 20 | W11169039 | Dishrack, Upper (Replaces: 8519572) |
|
Immediately | $ 203.14 | ||||
| 21 | WP8268828 | Cupshelf, Small (Replaces: 8268828) |
|
$ 135.89 | |||||
| 23 | 8268826 | Clip, Cupshelf |
|
$ 22.17 | |||||
| 24 | 8268815 | Clip, No Flip |
|
$ 23.69 |
