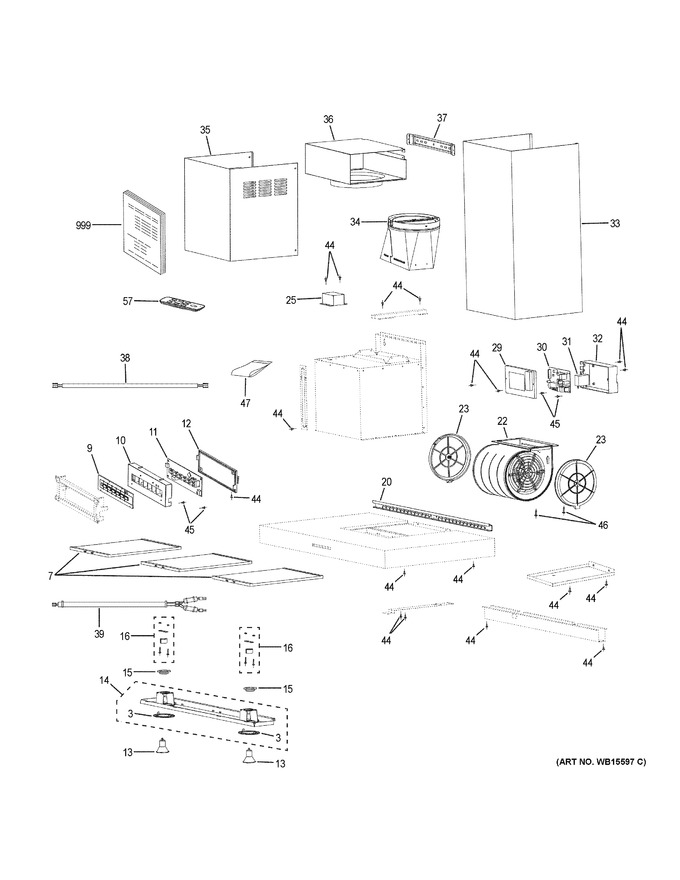

Range Hood


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	WB02X30557		Bezel Ss		Appelez-nous	-
7	WB02X30551		Grease Filter		Appelez-nous	-
9	WB03X30541		Buttons And Red Lens Asm		Appelez-nous	-
10	WB02X30525		Ui Board Holder		Appelez-nous	-
11	WB18X30518		Control Board		Appelez-nous	-
12	WB34X30562		Ui Board Holder Cover		Appelez-nous	-
13	WB25X30548		Led Lamp		Appelez-nous	-
14	WB07X30554		Lamp Panel Asm		Appelez-nous	-
15	WB02X30564		Rubber Ring		Appelez-nous	-
16	WB18X30566		Lamp Socket Asm		Appelez-nous	-
20	WB34X30536		Wall Mount Bracket		Appelez-nous	-
22	WB26X30510		Blower Motor Asm		Appelez-nous	-
23	WB02X30511		Air Filter				$ 107.48
25	WB02X30540		Junction Box		Appelez-nous	-
29	WB34X30506		Power Board Holder Cover		Appelez-nous	-
30	WB27X30534		Power Board		Appelez-nous	-
31	WB27X30535		Capacitor		Appelez-nous	-
32	WB02X30524		Power Board Holder		Appelez-nous	-
33	WB34X30538		Lower Duct Cover Ss		Appelez-nous	-
34	WB34X30571		Transition Duct And Damper Asm		Appelez-nous	-
35	WB34X30539		Upper Duct Cover Ss		Appelez-nous	-
36	WB34X30519		Recirculation Duct		Appelez-nous	-
37	WB34X30537		Duct Cover Bracket		Appelez-nous	-
38	WB18X30542		Ui Harness		Appelez-nous	-
39	WB18X30544		Lamp Harness		Appelez-nous	-
44	WB01X30509		Screw		Appelez-nous	-
45	WH02X27219		M Screw		Appelez-nous	-
46	WB01X30508		Screw		Appelez-nous	-
47	WB01X30552		Installation Hardware		Appelez-nous	-
57	WB02X30547		Remote Control		Appelez-nous	-
999	49-80816		Pm Owners & Install		Appelez-nous	-
999	31-11075		Pm Template Wall Hood		Appelez-nous	-
