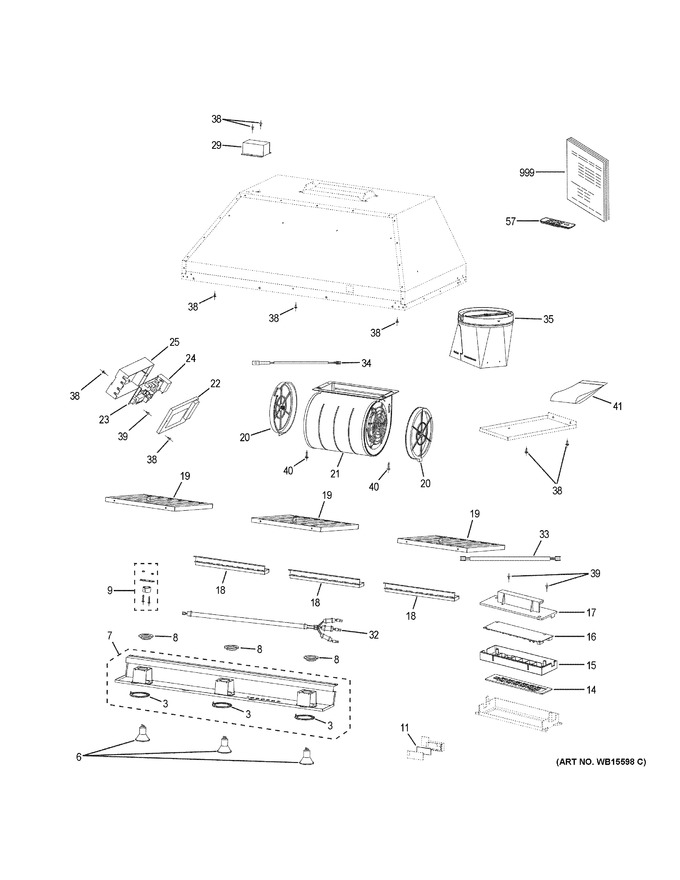

SELECT A DIAGRAM
Range Hood
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | WB02X30557 | Bezel Ss |
|
- | |||||
| 6 | WB25X30548 | Led Lamp |
|
- | |||||
| 7 | WB07X31596 | Stainless Steel Lamp Panel Asm |
|
- | |||||
| 8 | WB02X30564 | Rubber Ring |
|
- | |||||
| 9 | WB18X30566 | Lamp Socket Asm |
|
- | |||||
| 11 | WB27X29798 | Board Wifi Cat Module |
|
- | |||||
| 14 | WB03X30559 | Buttons And Red Lens Asm |
|
- | |||||
| 15 | WB02X30525 | Ui Board Holder |
|
- | |||||
| 16 | WB18X30518 | Control Board |
|
- | |||||
| 17 | WB34X30562 | Ui Board Holder Cover |
|
- | |||||
| 18 | WB32X30504 | Grease Collector Pan |
|
- | |||||
| 19 | WB02X30528 | Grease Baffle Filter |
|
- | |||||
| 20 | WB02X30511 | Air Filter |
|
$ 107.48 | |||||
| 21 | WB26X30510 | Blower Motor Asm |
|
- | |||||
| 22 | WB34X30506 | Power Board Holder Cover |
|
- | |||||
| 23 | WB27X30534 | Power Board |
|
- | |||||
| 24 | WB27X30535 | Capacitor |
|
- | |||||
| 25 | WB02X30524 | Power Board Holder |
|
- | |||||
| 29 | WB02X30540 | Junction Box |
|
- | |||||
| 32 | WB18X30545 | Lamp Harness |
|
- | |||||
| 33 | WB18X30565 | Ui Harness |
|
- | |||||
| 34 | WB24X30507 | Heat Sensor |
|
- | |||||
| 35 | WB34X30571 | Transition Duct And Damper Asm |
|
- | |||||
| 38 | WB01X30509 | Screw |
|
- | |||||
| 39 | WH02X27219 | M Screw |
|
- | |||||
| 40 | WB01X30508 | Screw |
|
- | |||||
| 41 | WB01X30527 | Installation Hardware |
|
- | |||||
| 57 | WB02X30547 | Remote Control |
|
- | |||||
| 999 | 49-80813 | Pm Owners Manual |
|
- |
