SELECT A DIAGRAM

01 - Console


02 - Tub , Lit/optional


03 - Door


04 - Dishrack


05 - Pump And Motor


06 - Wiring Harness

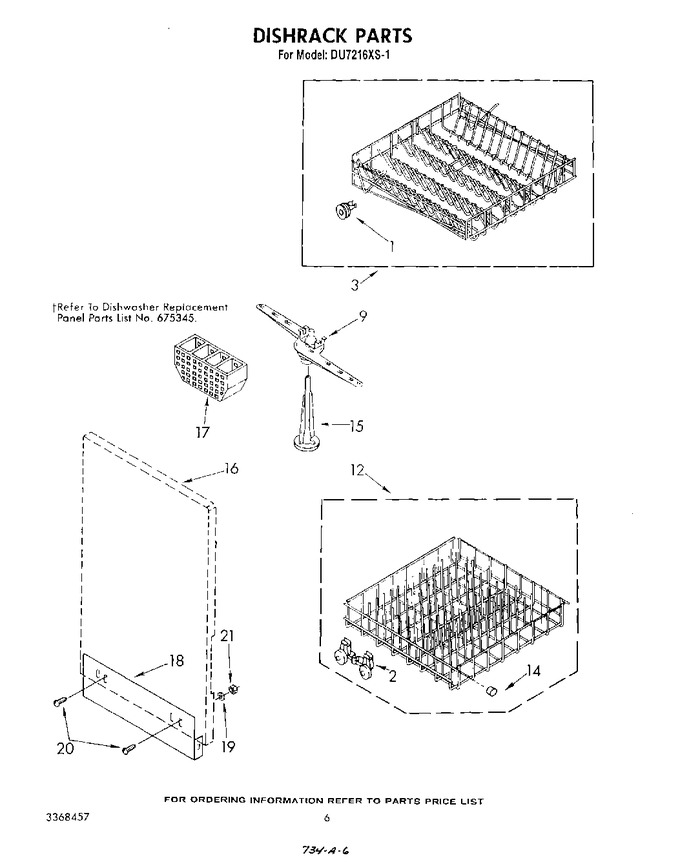

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	300995		Wheel & Axle Assembly (4)		Appelez-nous	-
2	4317933		Wheel & Carrier Assembly (4)   (Replaces: 303991)				$ 53.16
3	W11169039		Dishrack, Upper   (Replaces: 661521)			Immediately	$ 203.14
9	304204		Spray Arm Assembly				$ 67.61
12	W10311986		Dishrack, Lower   (Replaces: 304176)			Immediately	$ 188.14
14	304490		Bumper		Appelez-nous	-
15	304170		Tower				$ 72.38
16	N/A		Panel, Reversible Side		Appelez-nous	-
17	WP8539066		Silverware Basket   (Replaces: 3367117)				$ 106.52
18	3367549		Panel, Lower Side		Appelez-nous	-
19	W11089212		Washer   (Replaces: 12035)				$ 11.06
20	9419621		Screw (2)				$ 5.60
21	W10080180		Nut (2)   (Replaces: 965176)				$ 14.15

    View Diagram in Separate Window       Print Part List
