Evaporator Instructions


Freezer Door


Freezer Section


Freezer Shelves


Fresh Food Door


Fresh Food Section


Fresh Food Shelves


Ice Maker & Dispenser


Machine Compartment

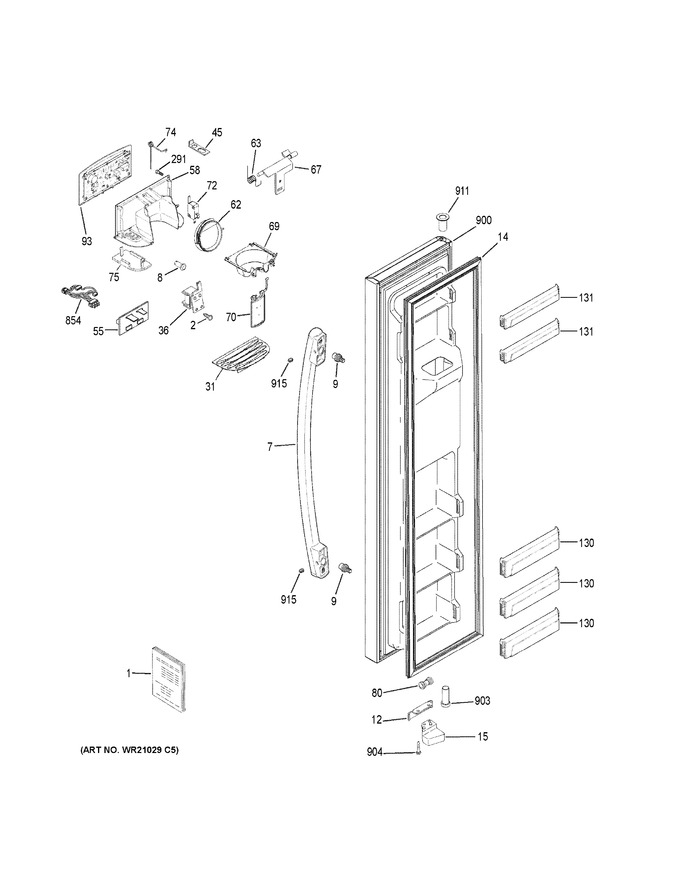

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-51985		Pm Mini Wiring Manual		Appelez-nous	-
1	49-60822		Pm Quick Use & Care Cafe		Appelez-nous	-
2	WR02X12257		Scr 4-10 Pl Pnp 3/4 Ss		Appelez-nous	-
7	WR12X21070		Arc Handle Asm Dg		Appelez-nous	-
8	WR02X13502		Rivet Clinch		Appelez-nous	-
9	WR01A01801		Fastener Door Handle   (Replaces: WR01X11007)			Immediately	$ 11.44
12	WR01A00225		Door Stop   (Replaces: WR02X13425)				$ 12.40
14	WR24X20455		Gasket		Appelez-nous	-
15	WR02X10780		Cam Closure Ff Black		Appelez-nous	-
31	WR17X12910		Grill Recess		Appelez-nous	-
36	WR01F01784		Solenoid Asm   (Replaces: WR62X10055)				$ 80.09
45	WR2X8818		Retainer Recess Door		Appelez-nous	-
55	WR01F00145		Board Asm Disp Lighting   (Replaces: WR55X10899)				$ 14.29
58	WR17X12900		Housing Shield Disp		Appelez-nous	-
62	WR01L01914		Door Recess Asm   (Replaces: WR17X11653)				$ 58.69
63	WG03A00047		Spring Recess Door   (Replaces: WR02X10585)			Immediately	$ 3.57
67	WR01L00935		Crank Door Recess   (Replaces: WR17X10706)				$ 11.44
69	WR17X21781		Dispenser Ice Funnel		Appelez-nous	-
70	WR17X20449		Paddle Asm		Appelez-nous	-
72	WR23X10783		Switch		Appelez-nous	-
74	WR01A00922		Spring Torsion   (Replaces: WR02X12256)				$ 21.44
75	WR02X13405		Cover Led Housing Shield		Appelez-nous	-
80	WR01F02845		Union Connector   (Replaces: WR02X11330)			Immediately	$ 17.15
93	WR55X30691		Dispenser Interface & Board Dorian Gray		Appelez-nous	-
130	WR01L00055		Shelf Door Fz Bottom   (Replaces: WR71X24432)				$ 17.42
131	WR71X24431		Shelf Door Fz Upper		Appelez-nous	-
291	WR01A01034		Screw 8-10 Pl Pnp 1/2 S   (Replaces: WR01X10221)				$ 4.20
854	WR23X10695		Harness Recess Disp		Appelez-nous	-
900	WR78X24433		Door Foam Asm Fz		Appelez-nous	-
903	WR01X10234		Thimble Door Btm Fz Black		Appelez-nous	-
904	WR01X10582		Scr 10-16		Appelez-nous	-
911	WR01X10956		Thimble Door		Appelez-nous	-
915	WR01X20424		Set Screw		Appelez-nous	-
