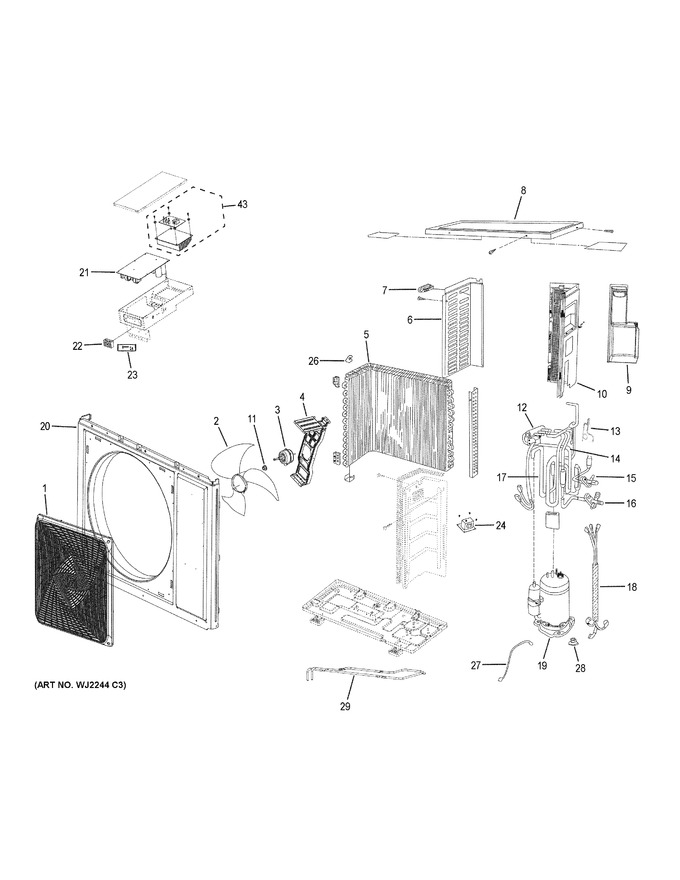

Room Air Conditioner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WJ71X24655		Grill		Appelez-nous	-
2	WJ73X22973		Fan Blade		Appelez-nous	-
3	WJ94X22975		Outdoor Fan Motor			Immediately	$ 180.78
4	WJ65X22976		Outdoor Fan Motor Bracket		Appelez-nous	-
5	WJ88X22970		Condenser		Appelez-nous	-
6	WJ76X24660		Left Side Panel		Appelez-nous	-
7	WJ01X24654		Handle		Appelez-nous	-
8	WJ76X24662		Topcover		Appelez-nous	-
9	WJ76X22982		Valve Cover		Appelez-nous	-
10	WJ76X24661		Right Side Panel		Appelez-nous	-
11	WJ01X23150		Flange Nut				$ 1.77
12	WJ53X24700		4-way Valve Tube Assembly		Appelez-nous	-
13	WJ26X24659		Electronic Expansion Valve		Appelez-nous	-
14	WJ53X22971		Discharge Tube		Appelez-nous	-
15	WJ53X22965		Liquid Service Valve				$ 18.48
15	WJ53X24973		Liquid Service Valve		Appelez-nous	-
16	WJ53X22966		Vapor Service Valve				$ 21.32
16	WJ53X24974		Vapor Service Valve		Appelez-nous	-
17	WJ53X22983		Suction Tube		Appelez-nous	-
18	WJ35X22978		Outdoor Wire Harness		Appelez-nous	-
18	WJ35X23003		Outdoor Wire Harness		Appelez-nous	-
19	WJ98X22969		Compressor		Appelez-nous	-
20	WJ76X24653		Casing		Appelez-nous	-
21	WJ26X24712		Power Control Board		Appelez-nous	-
22	WJ27X22985		Terminal Block		Appelez-nous	-
23	WJ27X24663		Terminal Block Supply		Appelez-nous	-
24	WJ27X22981		Reactor		Appelez-nous	-
26	WJ01X23219		Sensor Clip		Appelez-nous	-
27	WJ26X22984		Sensor Assembly Amb/dis/coil				$ 19.93
28	WJ01X22974		Compressor Flange Nut		Appelez-nous	-
29	WJ27X24656		Basepan Heater		Appelez-nous	-
43	WJ26X24110		Inverter Assembly		Appelez-nous	-
