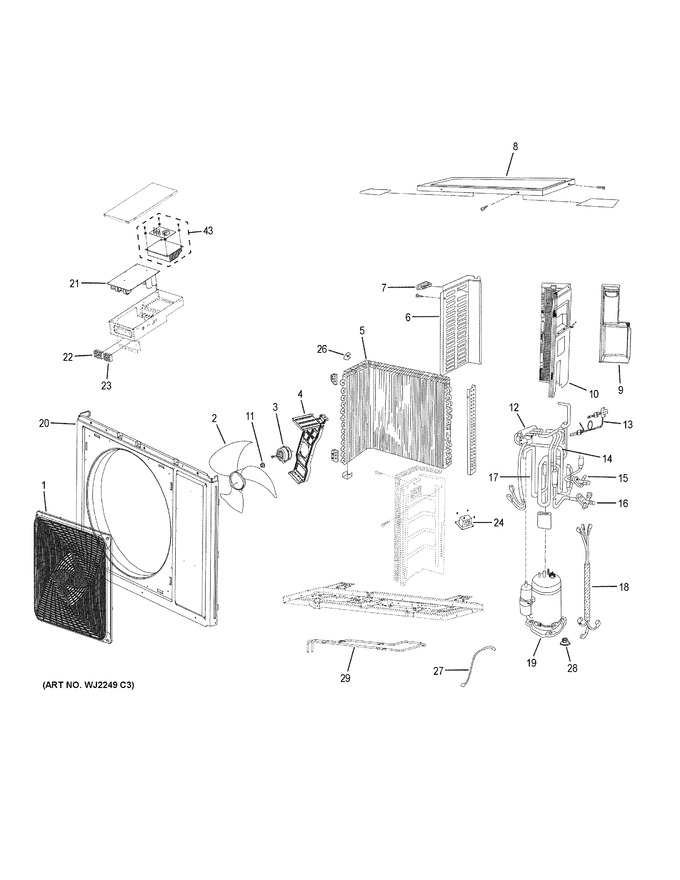

Room Air Conditioner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WJ71X23225 | Grille |
|
- | |||||
| 2 | WJ73X23014 | Fan Blade |
|
- | |||||
| 3 | WJ94X23000 | Outdoor Fan Motor |
|
$ 480.59 | |||||
| 4 | WJ65X23015 | Outdoor Fan Motor Bracket |
|
- | |||||
| 5 | WJ88X23016 | Condenser |
|
- | |||||
| 6 | WJ76X23170 | Left Side Panel |
|
- | |||||
| 7 | WJ01X24664 | Handle |
|
- | |||||
| 8 | WJ76X23231 | Top Cover |
|
- | |||||
| 9 | WJ76X23018 | Valve Cover |
|
- | |||||
| 10 | WJ71X23229 | Right Side Panel |
|
- | |||||
| 11 | WJ01X23150 | Flange Nut |
|
$ 1.77 | |||||
| 12 | WJ53X24702 | 4-way Valve Tube Assembly |
|
- | |||||
| 13 | WJ26X25395 | Electronic Expansion Valve |
|
- | |||||
| 13 | WJ26X24671 | Electronic Expansion Valve |
|
- | |||||
| 14 | WJ53X23019 | Discharge Tube |
|
- | |||||
| 15 | WJ53X22991 | Liquid Service Valve |
|
- | |||||
| 15 | WJ53X24973 | Liquid Service Valve |
|
- | |||||
| 16 | WJ53X24975 | Vapor Service Valve |
|
- | |||||
| 16 | WJ53X22992 | Vapor Service Valve |
|
- | |||||
| 17 | WJ53X23020 | Suction Tube |
|
- | |||||
| 18 | WJ35X25394 | Outdoor Wire Harness |
|
- | |||||
| 18 | WJ35X23003 | Outdoor Wire Harness |
|
- | |||||
| 19 | WJ98X23021 | Compressor |
|
- | |||||
| 20 | WJ76X23221 | Casing |
|
- | |||||
| 21 | WJ26X24714 | Power Control Board |
|
- | |||||
| 22 | WJ27X23011 | Terminal Block Indoor |
|
- | |||||
| 23 | WJ27X23010 | Terminal Block Supply |
|
- | |||||
| 23 | WJ27X25393 | Terminal Block Supply |
|
- | |||||
| 24 | WJ27X23006 | Reactor |
|
- | |||||
| 26 | WJ01X23219 | Sensor Clip |
|
- | |||||
| 27 | WJ26X23009 | Sensor Assembly Amb/dis/coil |
|
$ 22.15 | |||||
| 28 | WJ01X22974 | Compressor Flange Nut |
|
- | |||||
| 29 | WJ27X23172 | Pan Heater |
|
- | |||||
| 43 | WJ26X24102 | Inverter Assembly |
|
$ 344.54 |
