SELECT A DIAGRAM

Doors


Freezer Section


Fresh Food Section


Fresh Food Shelves


Ice Maker


Machine Compartment

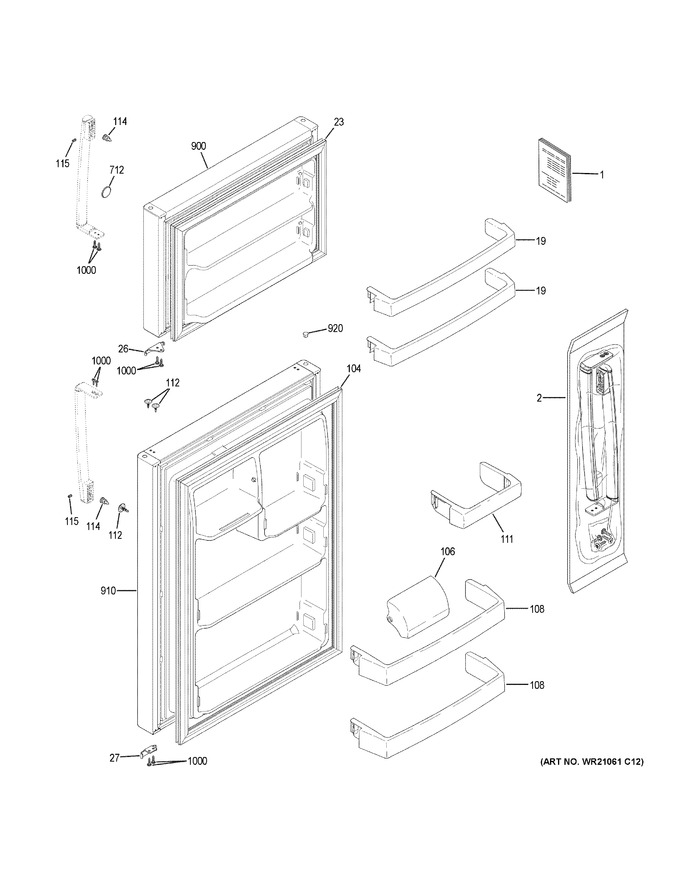

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-51993		Mini Manual Wiring		Appelez-nous	-
2	WR12X27942		Pk Handle Asm Al		Appelez-nous	-
19	WG03L01680		Shelf Front Full Fz   (Replaces: WR71X10681)				$ 76.98
23	WR24X23009		Gasket Door Fz Dg		Appelez-nous	-
26	WR02X28290		Freezer Door Stop Dorian Gray		Appelez-nous	-
27	WR02X28286		Refrigerator Door Stop Dorian Gray		Appelez-nous	-
104	WR24X23008		Gasket Door Ff Dg		Appelez-nous	-
106	WR22X28065		Refrigerator Clear Dairy Door		Appelez-nous	-
108	WG03F03746		Bin Fixed Raingutter Gal   (Replaces: WR71X10525)				$ 133.54
111	WG03L01575		Shelf Front Half Ff   (Replaces: WR71X10682)				$ 72.54
112	WR02X21242		Plug Door Rvsbl				$ 1.15
114	WR01X28657		Refrigerator Handle Mount		Appelez-nous	-
115	WG03A01608		Set Screw   (Replaces: WR01X11014)			Immediately	$ 6.35
712	WR02X25820		Badge Asm Ge		Appelez-nous	-
900	WR24X23030		Door Foam Asm Fz Ss		Appelez-nous	-
910	WR24X23029		Door Foam Asm Ff Ss		Appelez-nous	-
920	WR02X21663		Plug Button Thimble		Appelez-nous	-
1000	WR01X21151		Scr 10-16 Ab Trp 3/4 Nbs		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
