Blower & Motor Assembly
Controls & Backsplash
Drum
Dryer Cabinet
Dryer Front Panel & Door
Motor & Drive Assembly
Tub & Basket Assembly
Washer Cabinet & Lid
Water System
SELECT A DIAGRAM
New Model Search:

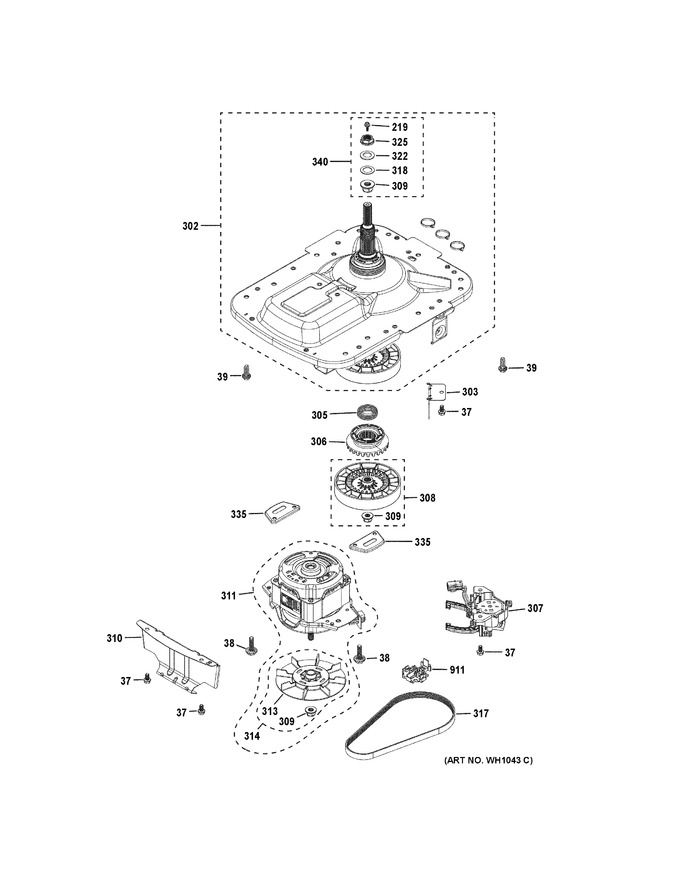

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 37 | WW01A00082 | 1/4-20 Taptite Hwh (Replaces: WH01X10612) |
|
$ 3.97 | |||||
| 38 | WH01X27310 | Hex Screw 5/16-18 |
|
- | |||||
| 39 | WH01X10616 | Hex. Pt Screw K80 X 3.59 |
|
- | |||||
| 219 | WH01X27309 | Screw Agitator |
|
- | |||||
| 302 | WH49X27322 | Kit Transmission Platform Asm & Nut |
|
- | |||||
| 303 | WH18X27313 | Bracket Connector |
|
- | |||||
| 305 | WW01A00053 | Spring Shifter (Replaces: WH01X10606) |
|
Immediately | $ 5.68 | ||||
| 306 | WH05X27185 | Clutch |
|
- | |||||
| 307 | WH18X27186 | Mode Shifter Asm |
|
- | |||||
| 308 | WH49X27323 | Kit Transmission Pulley, Nut, Washers, H |
|
- | |||||
| 309 | WE02X27298 | Nut Pulley |
|
- | |||||
| 310 | WH16X24155 | Platform Motor Shield |
|
- | |||||
| 311 | WH49X27319 | Kit Washer Motor And Pulley Asm |
|
- | |||||
| 313 | WH01X27247 | Fan Magnet Asm |
|
- | |||||
| 314 | WH49X27554 | Kit Motor Pulley & Nut |
|
- | |||||
| 317 | WE12X27300 | Belt Drive |
|
$ 45.49 | |||||
| 318 | WH01X27307 | Washer Hub |
|
- | |||||
| 322 | WH01X27289 | Washer Conical |
|
- | |||||
| 325 | WE01X27288 | Nut Hub |
|
- | |||||
| 335 | WE01X27311 | Motor Bracket |
|
- | |||||
| 340 | WE49X28115 | Kit Hardware |
|
- | |||||
| 911 | WH12X27187 | Speed Sensor |
|
- |
