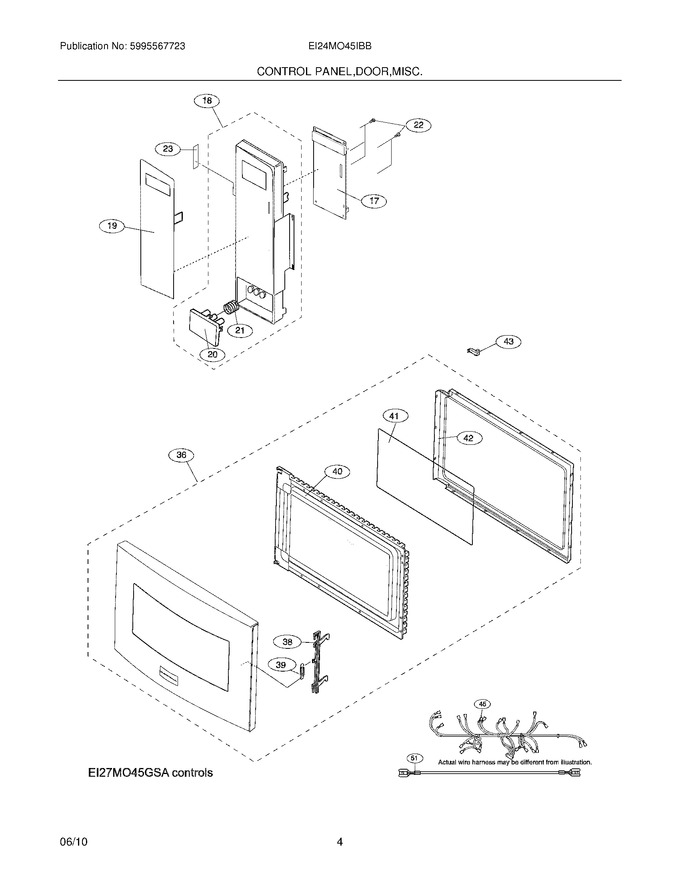

05 - Control Panel,door,misc.


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
20	5304464196		Push Button,door ,black				$ 79.54
21	5303319583		Spring, Door Button		Appelez-nous	-
22	5304456930		Screw,3 Mm X 10 Mm		Appelez-nous	-
23	5304468232		Label,user Caution		Appelez-nous	-
36	5304472254		Door Assy,complete ,black				$ 475.65
38	5304441893		Latch,door   (Replaces: 5304440856)			Immediately	$ 54.34
39	5304440316		Spring,door Latch			Immediately	$ 67.78
40	5304440857		Panel,inner Door ,black				$ 213.66
41	5304440860		Seal,door ,film				$ 63.09
42	5304440861		Choke Cover,inner Door				$ 81.13
43	5304442145		Door Stop		Appelez-nous	-
F17	5304464192		Control Board,printed Circuit			Immediately	$ 547.02
F18	5304513655		Control Panel Assy,frame ,black   (Replaces: 5304464194)				$ 415.64
F19	5304513655		Touch Control,key Pad ,black   (Replaces: 5304464898)				$ 415.64
F45	5304478950		Wiring Harness,main		Appelez-nous	-
F51	5304440870		Wire,high Voltage-a		Appelez-nous	-
