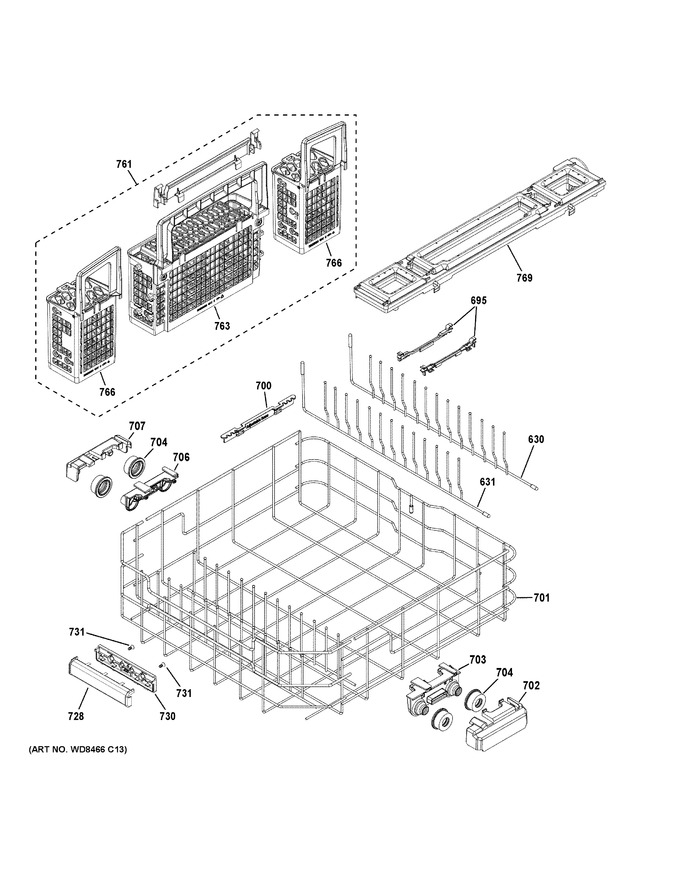

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 630 | WD28X20380 | Fdt Coated Lower Rack |
|
- | |||||
| 631 | WD28X20381 | Fdt Coated Lower Rack |
|
- | |||||
| 695 | WD12X20386 | Clip Lower Rack |
|
- | |||||
| 700 | WD28X20379 | Indexer |
|
- | |||||
| 701 | WD28X22939 | Rack Lower Asm Coated |
|
- | |||||
| 702 | WD12X20382 | Cover Roller |
|
- | |||||
| 703 | WD12X20387 | Carrier Roller |
|
- | |||||
| 703 | WD12X20388 | Roller Carrier Rh |
|
- | |||||
| 704 | WG04A04447 | Roller Lower Rack (Replaces: WD12X10435) |
|
Immediately | $ 4.07 | ||||
| 706 | WD12X20388 | Carrier Roller |
|
- | |||||
| 706 | WD12X20387 | Roller Carrier Lh |
|
- | |||||
| 707 | WD12X20383 | Cover Roller |
|
- | |||||
| 728 | WD22X20384 | Cover Handle Asm |
|
- | |||||
| 730 | WD22X20367 | Cover Handle Rear |
|
- | |||||
| 731 | WD02X20176 | Scr 8-16 B Flt .438 Ss |
|
- | |||||
| 761 | WD28X22926 | Basket Silverware Asm With Rail |
|
- | |||||
| 763 | WD28X20420 | Basket Asm Middle |
|
- | |||||
| 766 | WD28X20418 | Basket Asm Side |
|
- | |||||
| 769 | WD22X22928 | Blaster Silverware Asm |
|
- |
