SELECT A DIAGRAM

Body Parts

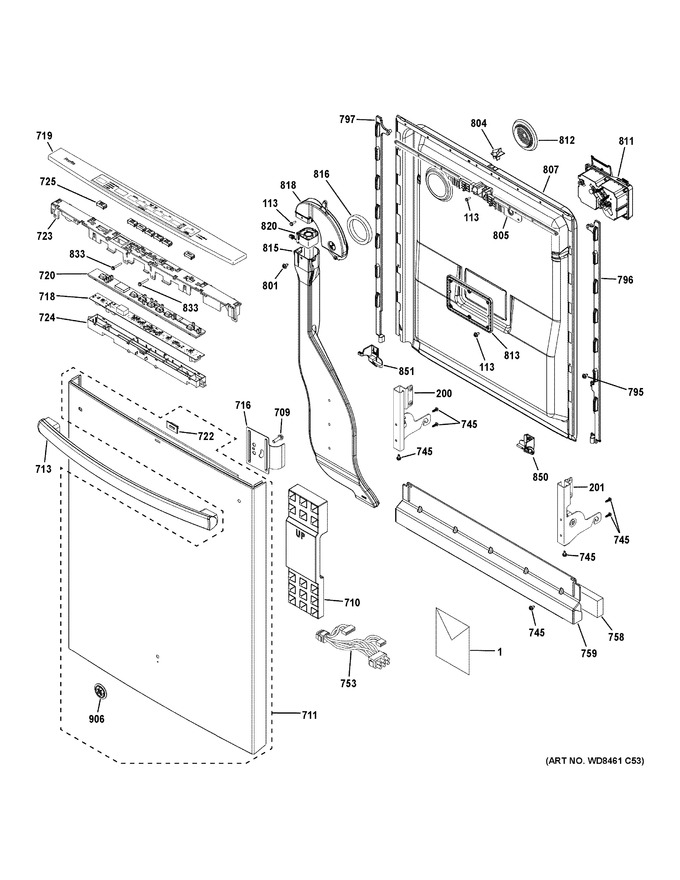

Escutcheon & Door Assembly


Lower Rack Assembly


Sump & Filter Assembly


Sump & Motor Mechanism


Upper Rack Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-31560		Pm Install Instructions		Appelez-nous	-
1	31-30898		Pm Mini-manual		Appelez-nous	-
1	49-55102		Pm Owners Manual		Appelez-nous	-
113	WG04A00176		Screw 8-16 Hxw 1/2 Ss   (Replaces: WD02X10067)				$ 3.57
200	WD14X23739		Arm Hinge Asm Lh		Appelez-nous	-
201	WD14X23738		Arm Hinge Asm Rh		Appelez-nous	-
709	WD01X20934		Scr 1/4-28 Fl Ihxw 15/16		Appelez-nous	-
710	WD01X10585		Block Foam Door		Appelez-nous	-
711	WG04A02635		Door Outer Painted   (Replaces: WD34X20134)				$ 217.35
713	WD09X10086		Door Handle Asm		Appelez-nous	-
716	WD01X20135		Bracket Handle		Appelez-nous	-
718	WD21X23938		Kit Svc Ui Top Logic		Appelez-nous	-
718	WD21X23710		Configured Ui Control		Appelez-nous	-
719	WD34X22870		Console Cvr Graphics Asm		Appelez-nous	-
720	WD12X23316		Silicone Light Pipe		Appelez-nous	-
722	WD09X20066		Lens And Adhesive Asm		Appelez-nous	-
723	WG04F05111		Console Top Control   (Replaces: WD12X20184)				$ 24.30
724	WD12X10470		Housing Bottom		Appelez-nous	-
725	WD09X21692		Button And Graphic Asm		Appelez-nous	-
745	WD01X22514		Scr 10-32 Gx Ihxw 9/16 S		Appelez-nous	-
753	WD21X21664		Harness Asm Door		Appelez-nous	-
758	WD27X21334		Insulation Toe Kick		Appelez-nous	-
759	WD27X10392		Toe Kick Painted Asm		Appelez-nous	-
780	WD30X25140		Inner Door Insulation		Appelez-nous	-
795	WD02X22628		Screw T15 8-16 Plastite 60-1		Appelez-nous	-
796	WD01X22836		Attach Strip Rh		Appelez-nous	-
797	WG04A02187		Attach Strip   (Replaces: WD01X10634)				$ 18.59
801	WB02T10324		Scr 6-20 Gxb Ihxw 3/8 Ni		Appelez-nous	-
804	WG04F06693		Striker Latch   (Replaces: WD13X10071)			Immediately	$ 8.58
805	WD13X22837		Attachment Strip Top		Appelez-nous	-
807	WD31X22821		Door Inner Ss		Appelez-nous	-
811	WD12X24058		Detergent Disp No Sensor		Appelez-nous	-
812	WD24X20586		Cover Vent		Appelez-nous	-
813	WD12X10462		Plate Detergent		Appelez-nous	-
815	WD12X20218		Vent Conduit Asm		Appelez-nous	-
816	WG04L01634		Door Vent Seal   (Replaces: WD08X10092)			Immediately	$ 10.01
818	WD12X23557		Transition Piece Asm		Appelez-nous	-
820	WG04F05895		Vent Fan Asm   (Replaces: WD24X20256)				$ 66.75
833	WD02X20140		Scr 10-16 Pl Pnt 2.25 S		Appelez-nous	-
850	WD12X22835		Trim Door Rh		Appelez-nous	-
851	WD12X22834		Trim Door Lh		Appelez-nous	-
906	WR04X28513		Ge Badge Black Stainless		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
