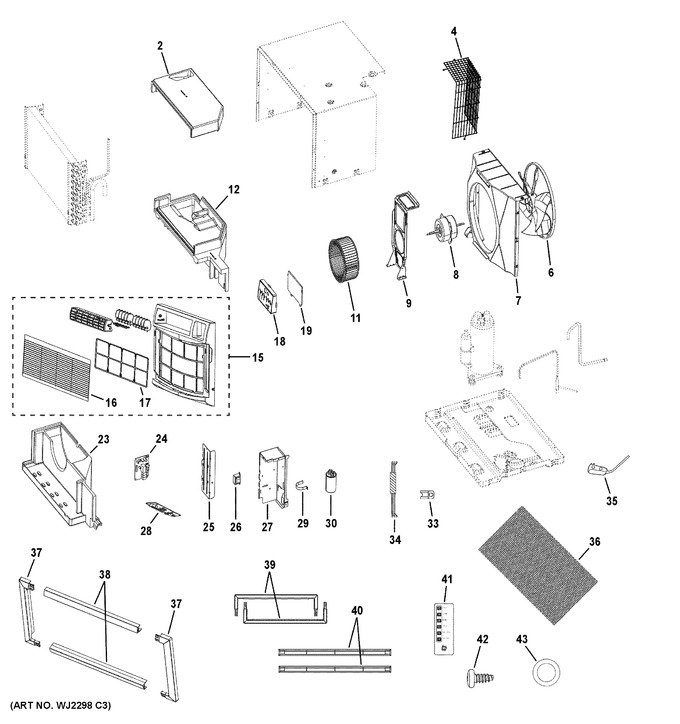

Room Air Conditioner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WJ76X21764 | Indoor Fan Shroud Upper |
|
- | |||||
| 4 | WJ76X24771 | Wire Case |
|
- | |||||
| 6 | WJ73X20065 | Outdoor Fan |
|
- | |||||
| 7 | WJ76X20093 | Outdoor Fan Shroud |
|
- | |||||
| 8 | WJ94X21770 | Fan Motor |
|
- | |||||
| 9 | WJ05X20089 | Motor Bracket |
|
- | |||||
| 11 | WJ73X21768 | Centrifugal Fan |
|
- | |||||
| 12 | WJ76X21765 | Middle Indoor Fan Shroud |
|
- | |||||
| 15 | WJ71X24772 | Front Panel Assembly |
|
- | |||||
| 16 | WJ71X24773 | Front Panel Grill |
|
- | |||||
| 17 | WJ85X22380 | Filter |
|
$ 7.82 | |||||
| 18 | WJ71X21763 | User Interface |
|
- | |||||
| 19 | WJ26X21767 | Ui Board Cover |
|
- | |||||
| 23 | WJ76X21766 | Indoor Fan Shroud Lower |
|
- | |||||
| 24 | WJ26X21775 | User Interface Board |
|
- | |||||
| 25 | WJ05X20381 | Control Box Cover |
|
- | |||||
| 26 | WJ27X21772 | Transformer |
|
- | |||||
| 27 | WJ05X20076 | Control Box |
|
- | |||||
| 28 | WJ29X20075 | Control Board |
|
- | |||||
| 29 | WJ1X21762 | Capacitor Clamp |
|
- | |||||
| 30 | WJ20X21774 | Capacitor |
|
- | |||||
| 33 | WJ05X20101 | Wire Clamp |
|
- | |||||
| 34 | WJ36X10023 | Harness |
|
- | |||||
| 35 | WJ35X20091 | Power Cord |
|
- | |||||
| 36 | WJ71X21769 | Rear Grill |
|
- | |||||
| 37 | WJ68X22863 | Frame |
|
- | |||||
| 38 | WJ66X22862 | Frame |
|
- | |||||
| 39 | WJ66X22860 | Frame |
|
- | |||||
| 40 | WJ66X22861 | Frame |
|
- | |||||
| 41 | WJ26X23777 | Remote Control |
|
- | |||||
| 42 | WJ01X23759 | Screw |
|
- | |||||
| 43 | WJ43X24774 | Gasket |
|
- |
