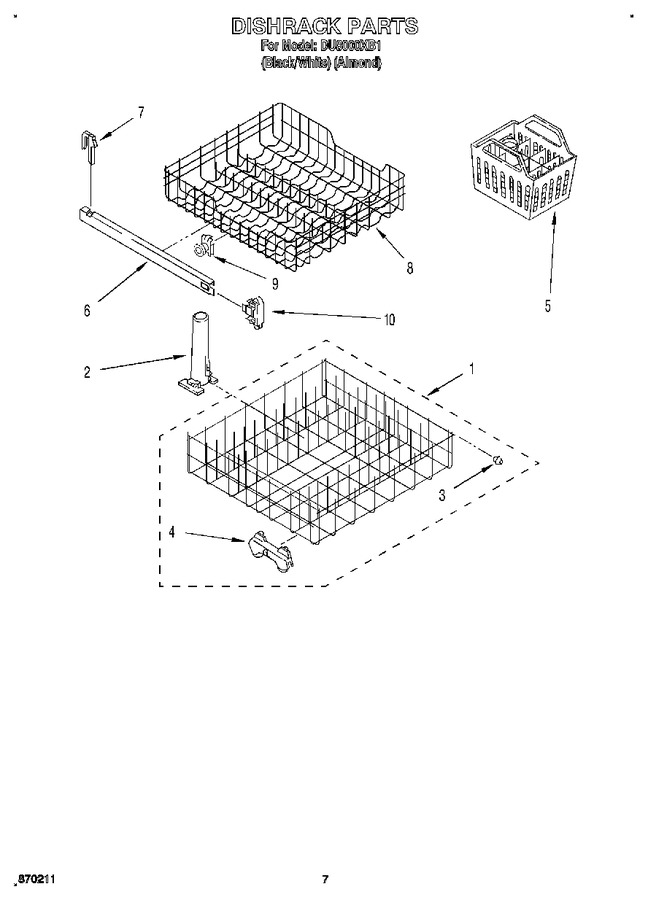

01 - Frame And Console
02 - Inner Door
03 - Tub Assembly
04 - Pump And Spray Arm
05 - Pump And Motor
06 - Dishrack
07 - Miscellaneous, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10161215 | Lower Dishrack (Replaces: 3369760) |
|
$ 198.12 | |||||
| 2 | WP8268825 | Tower, Protector (Replaces: 3369761) |
|
$ 108.90 | |||||
| 3 | WP3385142 | Bumper, Dishrack (2) (Replaces: 3368006) |
|
$ 94.82 | |||||
| 4 | WP3376961 | Wheel & Transport Assembly (4) (Replaces: 3369509) |
|
$ 98.69 | |||||
| 5 | 3369762 | Basket, Silverware |
|
$ 58.89 | |||||
| 6 | 3369071 | Track, Dishrack (2) |
|
- | |||||
| 7 | 3374701 | Stop, Track (2) |
|
- | |||||
| 8 | W11169039 | Dishrack, Upper Assembly (Replaces: 3372600) |
|
Immediately | $ 203.14 | ||||
| 9 | 3371581 | Wheel & Axle Assembly (4) |
|
- | |||||
| 10 | 300845 | End Cap, Track (2) |
|
$ 7.63 |
