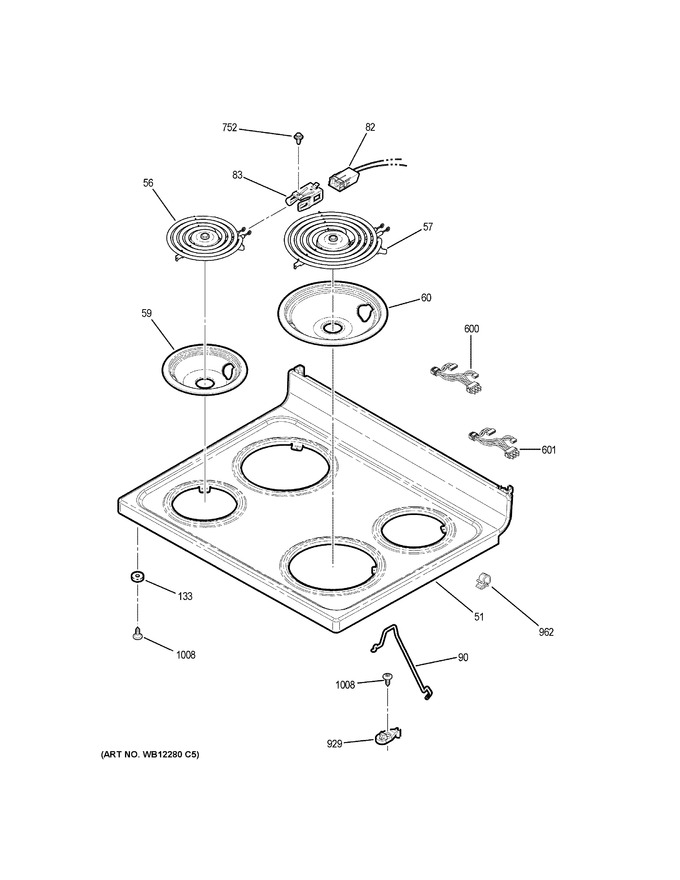

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 51 | WB62T10614 | Rangetop Mech Asm Wh |
|
- | |||||
| 56 | WB30X31058 | 6" Surface Burner With Sensor |
|
- | |||||
| 57 | WB30X31057 | 8" Surface Burner With Sensor |
|
- | |||||
| 59 | WG02F00094 | 6 Inch Chrome Burner Bowl - Elec (Replaces: WB31T10010) |
|
Immediately | $ 35.73 | ||||
| 60 | WS01L00407 | 8 Inch Chrome Burner Bowl - Elec (Replaces: WB31T10011) |
|
Immediately | $ 37.47 | ||||
| 82 | WB18X30954 | Receptacle Clip |
|
- | |||||
| 83 | WB02K10381 | Clip Receptacle |
|
- | |||||
| 90 | WB02T10025 | Rod Support |
|
- | |||||
| 133 | WB02X29562 | Rangetop Bumper |
|
- | |||||
| 600 | WB18X32637 | Harness Wire Maintop Lt |
|
- | |||||
| 601 | WB18X32636 | Harness Wire Maintop Rt |
|
- | |||||
| 752 | WG02A00488 | Screw (Replaces: WB1K5200) |
|
$ 4.20 | |||||
| 929 | WB02T10026 | Maintop Strike |
|
- | |||||
| 962 | WS01A01095 | Clip Wire (Replaces: WB2X8115) |
|
Immediately | $ 3.57 | ||||
| 1008 | WB1X5904 | Scr 8-18 Ba Por 3/4 Sn |
|
- |
