Room Air Conditioner
New Model Search:

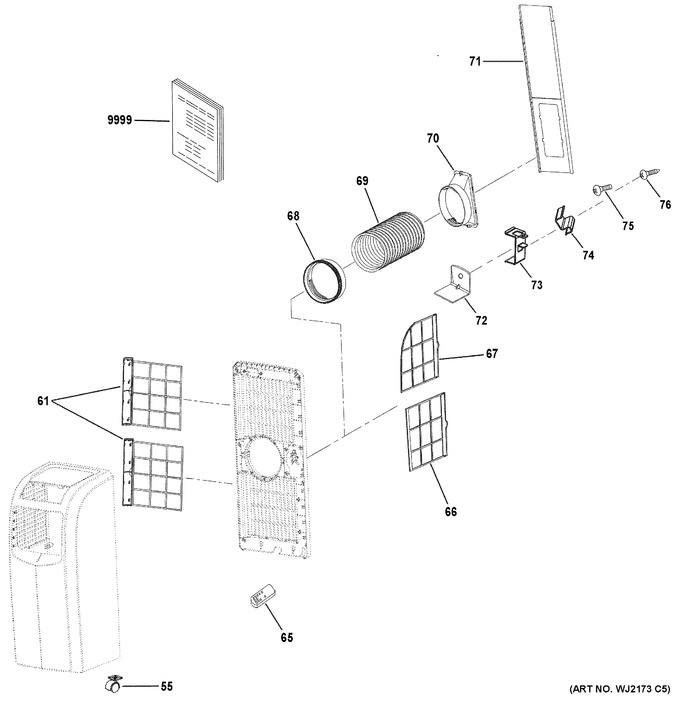

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 55 | WJ01X22912 | Wheel |
|
- | |||||
| 61 | WJ85X24836 | Filter Handle |
|
- | |||||
| 65 | WJ26X22481 | Remote Control |
|
- | |||||
| 66 | WJ85X24794 | Lower Filter |
|
- | |||||
| 67 | WJ85X24793 | Upper Filter |
|
- | |||||
| 68 | WJ65X22918 | Hose Connector |
|
$ 14.50 | |||||
| 69 | WJ65X22920 | Exhaust Hose |
|
$ 68.70 | |||||
| 70 | WJ65X22917 | Connector |
|
$ 20.52 | |||||
| 71 | WG01A00696 | Window Seal Plate (Replaces: WJ43X22919) |
|
Immediately | $ 79.14 | ||||
| 72 | WJ65X24122 | Top Bracket |
|
- | |||||
| 73 | WJ01X24475 | Top Window Bracket |
|
- | |||||
| 74 | WJ01X24474 | Bottom Window |
|
- | |||||
| 75 | WJ01X24473 | Flat Screw |
|
- | |||||
| 76 | WJ01X24472 | Pointed Screw |
|
- | |||||
| 9999 | 49-5000135 | Pm Owners And Install |
|
- |
