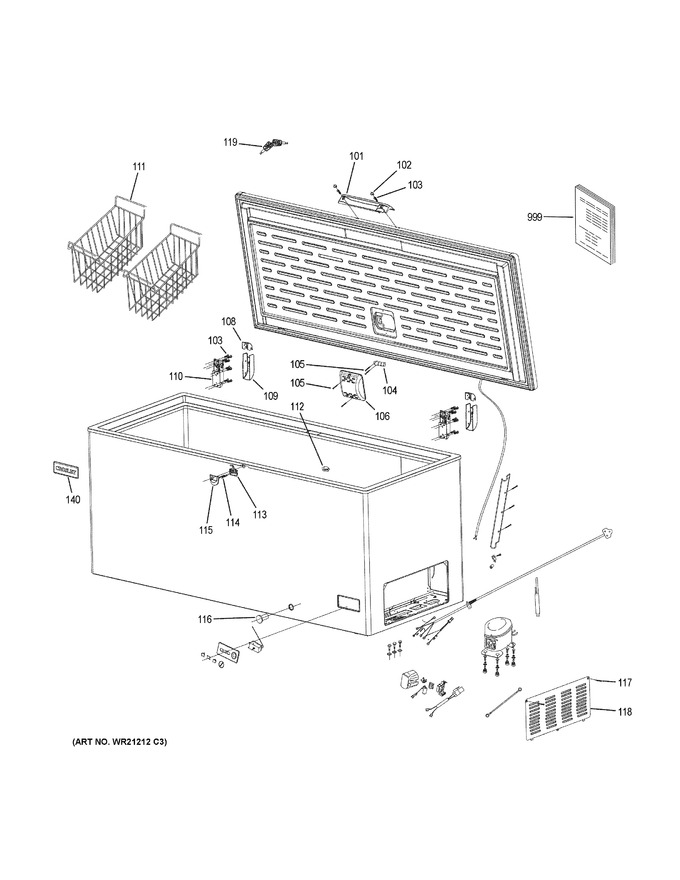

SELECT A DIAGRAM

Freezer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
101	WR12X28041		Freezer Door - Handle White		Appelez-nous	-
102	WR01X28054		Cover Screw White		Appelez-nous	-
103	WR01X27824		Screw M5 X 16		Appelez-nous	-
104	WR55X30078		Led Light		Appelez-nous	-
105	WR01X28030		Screw St3.5 X 13		Appelez-nous	-
106	WR13X28032		Led Light Cover		Appelez-nous	-
108	WR13X28037		Hinge Cover Top White		Appelez-nous	-
109	WR13X28039		Hinge Cover Bottom White		Appelez-nous	-
110	WR13X30075		Freezer Door Hinge		Appelez-nous	-
111	WR71X30077		Freezer Basket		Appelez-nous	-
112	WR01X28051		Drain Plug Interior				$ 1.37
113	WR01X28052		Door Lock		Appelez-nous	-
114	WR01X20672		Screw		Appelez-nous	-
115	WR13X28055		Cover Door Lock		Appelez-nous	-
116	WR01X27970		Drain Plug Exterior		Appelez-nous	-
117	WR01X27843		Screw St3.5 X 13		Appelez-nous	-
118	WR14X27845		Access Cover		Appelez-nous	-
119	WR01X30076		Door Key Set		Appelez-nous	-
140	WR02X30818		Crosley Badge		Appelez-nous	-
999	49-1000112		Pm Owners Manual		Appelez-nous	-
999	31-51972		Pm Mini Manual		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
