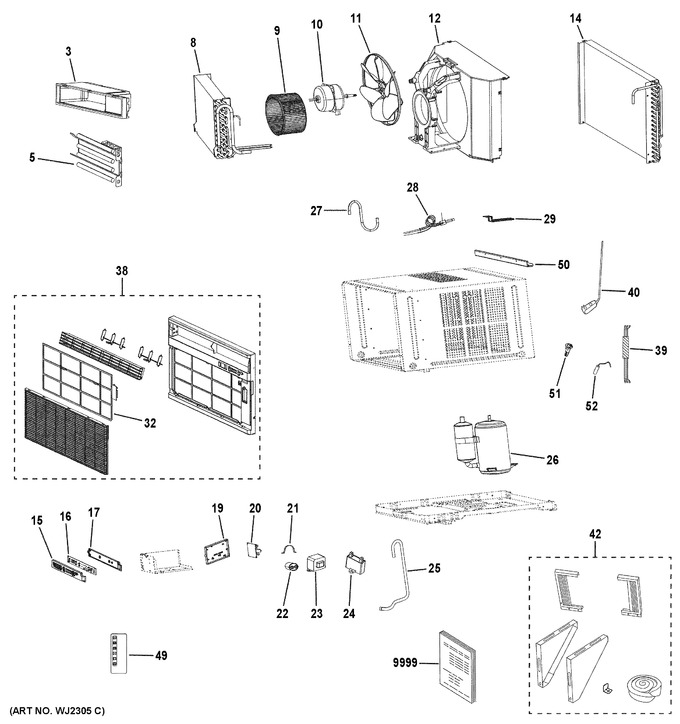

Room Air Conditioner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | WJ76X24450 | Top Scroll Casing |
|
- | |||||
| 5 | WJ27X24431 | Heater |
|
- | |||||
| 8 | WJ87X24466 | Evaporator |
|
- | |||||
| 9 | WJ73X24452 | Centrifugal Fan |
|
- | |||||
| 10 | WJ94X24454 | Fan Motor |
|
- | |||||
| 11 | WJ73X24453 | Propeller Fan |
|
- | |||||
| 12 | WJ76X24451 | Outdoor Fan Shroud |
|
- | |||||
| 14 | WJ88X24467 | Condenser |
|
- | |||||
| 15 | WJ26X23868 | Ui Board Cover |
|
- | |||||
| 16 | WJ26X23879 | Ui Board |
|
$ 111.99 | |||||
| 17 | WJ26X23867 | Ui Board Support |
|
- | |||||
| 19 | WJ71X22144 | Control Panel |
|
- | |||||
| 20 | WJ26X24436 | Main Control Board |
|
- | |||||
| 21 | WJ01X23946 | Capacitor Clam |
|
- | |||||
| 22 | WJ20X24468 | Capacitor |
|
- | |||||
| 23 | WJ27X24437 | Transformer |
|
- | |||||
| 24 | WJ26X24443 | Terminal Board |
|
- | |||||
| 25 | WJ53X24469 | Suction Tube |
|
- | |||||
| 26 | WJ98X22876 | Compressor |
|
- | |||||
| 27 | WJ53X24470 | Discharge Tube |
|
- | |||||
| 28 | WJ53X24471 | Capillary Tube |
|
- | |||||
| 29 | WJ71X24420 | Drawbar |
|
- | |||||
| 32 | WJ85X24447 | Filter |
|
- | |||||
| 38 | WJ71X24464 | Front Panel Assembly |
|
- | |||||
| 39 | WJ35X23903 | Main Harness |
|
- | |||||
| 40 | WJ35X10178 | Cord, Power |
|
- | |||||
| 42 | WJ43X24465 | Accessory Assembly |
|
- | |||||
| 49 | WJ26X23777 | Remote Control |
|
- | |||||
| 50 | WJ65X24444 | Top Rail |
|
- | |||||
| 51 | WJ01X24426 | Outlet Air Temp Sensor Holder |
|
- | |||||
| 52 | WJ26X24429 | Outlet Air Temp Sensor |
|
- | |||||
| 9999 | 31-30902 | Pm Mini Manual |
|
- | |||||
| 9999 | 49-7838 | Pm Owners Manual |
|
- |
