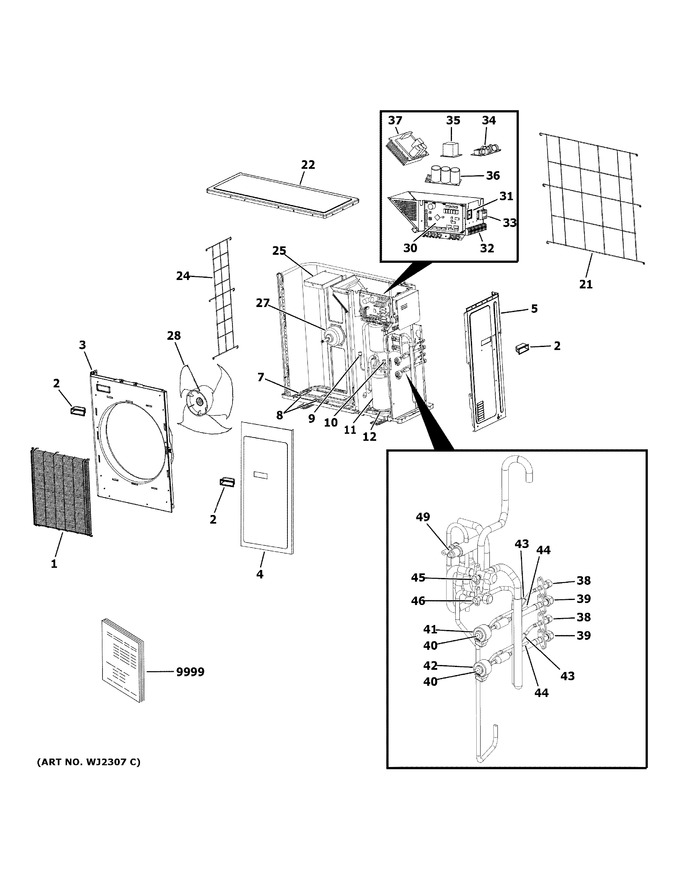

Room Air Conditioner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WJ71X25138 | Frontpanel |
|
- | |||||
| 2 | WJ65X25041 | Handel |
|
- | |||||
| 3 | WJ71X25036 | Front Grille |
|
- | |||||
| 4 | WJ76X24367 | Front Service Panel |
|
- | |||||
| 5 | WJ71X23737 | Right Side Panel |
|
- | |||||
| 7 | WJ27X25052 | Heating Element |
|
- | |||||
| 8 | WJ65X25035 | Baffle Plate |
|
- | |||||
| 9 | WJ26X23722 | Low Pressure Switch |
|
- | |||||
| 10 | WJ27X22646 | High Pressure Switch |
|
- | |||||
| 11 | WJ98X25048 | Compressor |
|
- | |||||
| 12 | WJ27X25045 | Heater Band |
|
- | |||||
| 21 | WJ71X25038 | Rear Grille |
|
- | |||||
| 22 | WJ71X23732 | Top Panel |
|
$ 70.68 | |||||
| 24 | WJ71X25037 | Left Grille |
|
- | |||||
| 25 | WJ65X23733 | Outdoor Fan Motor Bracket |
|
- | |||||
| 26 | WJ26X28816 | Sensor Assy.(tc,ts,ta,td,te) |
|
- | |||||
| 27 | WJ94X25044 | Fan Motor |
|
- | |||||
| 28 | WJ73X25042 | Fan Blade |
|
- | |||||
| 30 | WJ26X25053 | Outdoor Power Control Board |
|
- | |||||
| 31 | WJ26X25054 | Service Power Control Board |
|
- | |||||
| 32 | WJ26X25074 | Terminal Block (indoor) |
|
- | |||||
| 33 | WJ26X25073 | Terminal Block (supply) |
|
- | |||||
| 34 | WJ26X25043 | Filter Power Control Board |
|
- | |||||
| 35 | WJ26X23734 | Reactor |
|
- | |||||
| 36 | WJ20X25033 | Capacitor Power Control Board |
|
- | |||||
| 37 | WJ26X25139 | Inverter Driver Module |
|
- | |||||
| 38 | WJ53X25047 | Gas Pipe 3/8 -9.52mm |
|
- | |||||
| 39 | WJ53X25046 | Liquid Pipe 1/4- 6,35 |
|
- | |||||
| 40 | WJ26X22674 | Expansion Valve Body |
|
- | |||||
| 41 | WJ26X25034 | Lev Coil |
|
- | |||||
| 42 | WJ26X24364 | Eev Coil |
|
- | |||||
| 43 | WJ26X24077 | Liquid Pipe Sensor |
|
- | |||||
| 44 | WJ26X22537 | Vapor Pipe Sensor |
|
- | |||||
| 45 | WJ53X25050 | Gas Stop Valve |
|
- | |||||
| 46 | WJ53X25049 | Liquid Stop Valve |
|
- | |||||
| 49 | WJ53X23567 | 4-way Valve |
|
- | |||||
| 55 | WJ53X23724 | E.e.v-o Coil |
|
- | |||||
| 91 | WJ26X22636 | Toci Sensor |
|
- | |||||
| 9999 | 31-5000001 | Pm Install Instructions |
|
- |
