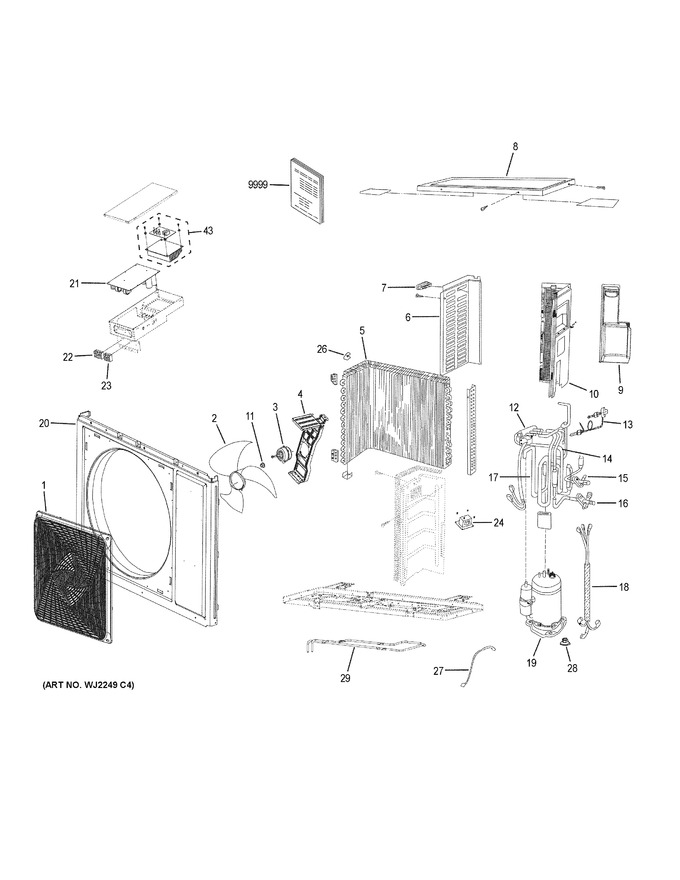

Room Air Conditioner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WJ71X23261 | Grille |
|
- | |||||
| 2 | WJ73X22998 | Fan Blade |
|
$ 73.09 | |||||
| 3 | WJ94X23000 | Outdoor Fan Motor |
|
$ 480.59 | |||||
| 4 | WJ65X23001 | Outdoor Fan Motor Bracket |
|
- | |||||
| 5 | WJ88X22994 | Condenser |
|
$ 400.98 | |||||
| 6 | WJ71X23215 | Left Side Panel |
|
$ 36.97 | |||||
| 7 | WJ01X24664 | Handle |
|
- | |||||
| 8 | WJ76X23220 | Top Cover |
|
- | |||||
| 9 | WJ76X23007 | Valve Cover |
|
- | |||||
| 10 | WJ71X23218 | Right Side Panel |
|
$ 52.61 | |||||
| 11 | WJ01X23150 | Flange Nut |
|
$ 1.77 | |||||
| 12 | WJ53X24701 | 4-way Valve Tube Assembly |
|
- | |||||
| 13 | WJ26X24668 | Electronic Expansion Valve |
|
- | |||||
| 14 | WJ53X22995 | Discharge Tube |
|
- | |||||
| 15 | WJ53X24973 | Liquid Service Valve |
|
- | |||||
| 16 | WJ53X24975 | Vapor Service Valve |
|
- | |||||
| 17 | WJ53X23008 | Suction Tube |
|
- | |||||
| 18 | WJ35X23003 | Outdoor Wire Harness |
|
- | |||||
| 19 | WJ98X22993 | Compressor |
|
- | |||||
| 20 | WJ76X23212 | Casing |
|
- | |||||
| 21 | WJ26X24713 | Power Control Board |
|
$ 293.43 | |||||
| 22 | WJ27X23011 | Terminal Block Indoor |
|
- | |||||
| 23 | WJ27X23010 | Terminal Block Supply |
|
- | |||||
| 24 | WJ27X23006 | Reactor |
|
- | |||||
| 26 | WJ01X23219 | Sensor Clip |
|
- | |||||
| 27 | WJ26X23009 | Sensor Assembly Amb/dis/coil |
|
$ 22.15 | |||||
| 28 | WJ01X22974 | Compressor Flange Nut |
|
- | |||||
| 29 | WJ27X24665 | Basepan Heater |
|
- | |||||
| 43 | WJ26X24100 | Inverter Assembly |
|
- | |||||
| 9999 | 31-5000276 | Pm Install Instructions |
|
- |
