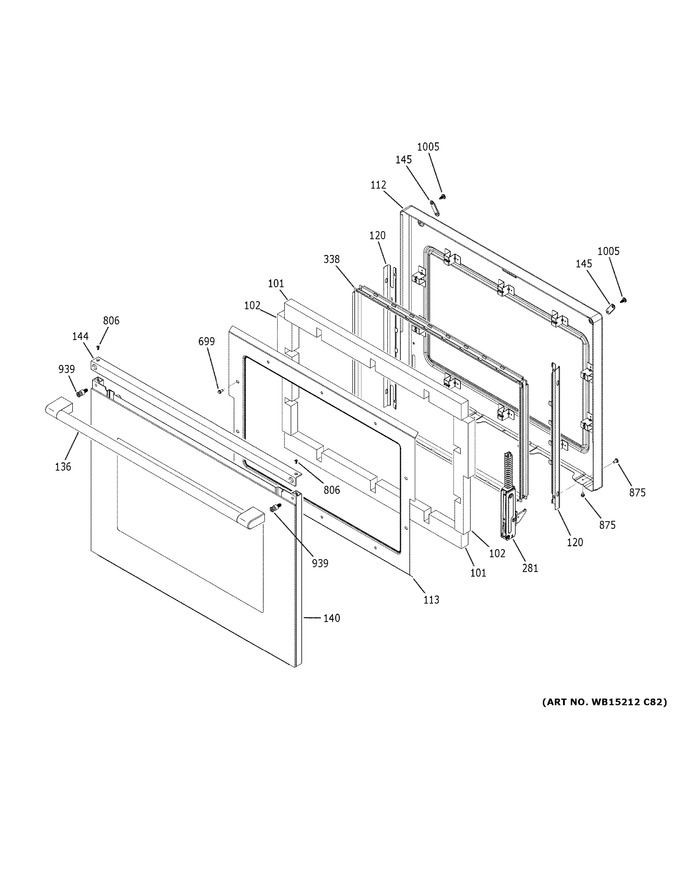

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
101	WB35X21737		Insulation Dr Top		Appelez-nous	-
102	WB35X31513		Door Side Insulation		Appelez-nous	-
112	WB63X32569		Oven Door Liner Asm		Appelez-nous	-
113	WB34X31516		Door Insulation Retainer		Appelez-nous	-
120	WB34X28482		Liner Support		Appelez-nous	-
136	WB15X32948		Stainless Steel Handle And Endcap		Appelez-nous	-
140	WB56X32949		Stainless Steel Door Trim And Glass Asm		Appelez-nous	-
144	WB07X32950		Oven Door Top Trim		Appelez-nous	-
145	WB02X32816		Door Liner Plug		Appelez-nous	-
281	WB10X30584		Door Hinge Lt		Appelez-nous	-
281	WB10X30583		Door Hinge Rt		Appelez-nous	-
281	WB10X27479		Hinge Door Rh		Appelez-nous	-
281	WB10X27478		Hinge Door Lh		Appelez-nous	-
338	WG02L08666		Window Pack Asm   (Replaces: WB56X27480)			Immediately	$ 638.33
699	WB1K5150		Screw St10-16 X 7/16"		Appelez-nous	-
806	WB01X32952		Screw 8-32 Tt Flt 7/20		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57
939	WB01X32951		Mounting Stud		Appelez-nous	-
1005	WS01A01018		Screw 10-32 Tr T   (Replaces: WB01T10008)			Immediately	$ 3.57
