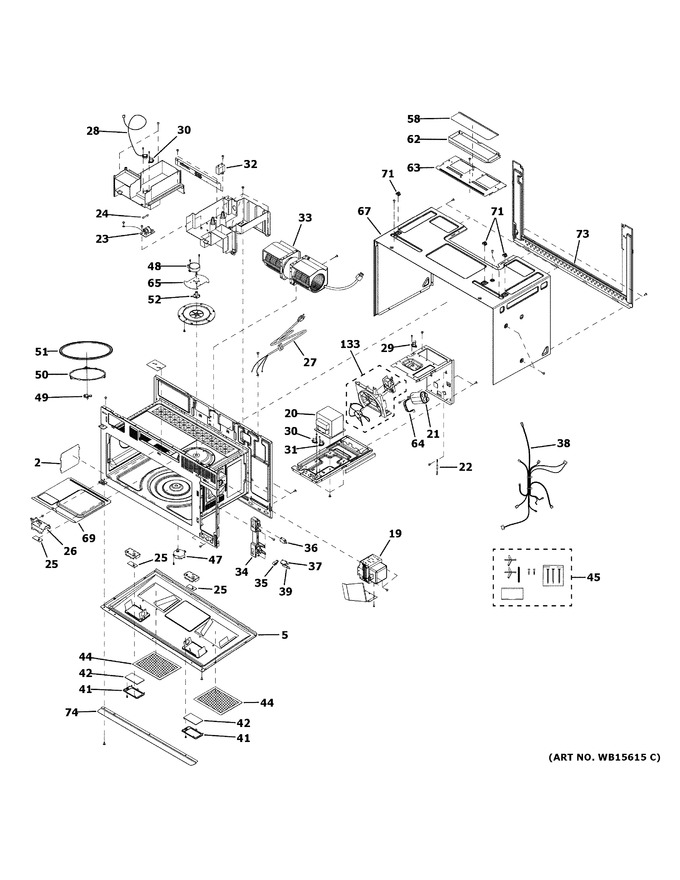

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WB02X25611 | Wave Guide Cover |
|
$ 38.06 | |||||
| 5 | WB56X33473 | Base Plate |
|
- | |||||
| 19 | WB27X11191 | Magnetron |
|
- | |||||
| 20 | WB24X25617 | H.v.transformer |
|
- | |||||
| 21 | WB27X25625 | H.v.capacitor |
|
- | |||||
| 22 | WB27X25616 | H.v.diode |
|
- | |||||
| 23 | WB27X11140 | Filter Noise |
|
- | |||||
| 24 | WB27X11138 | Fuse |
|
- | |||||
| 25 | WB25X33469 | Lamp |
|
- | |||||
| 26 | WB36X28927 | Cover, Lamp |
|
- | |||||
| 27 | WB18X25609 | Power Cord |
|
- | |||||
| 28 | WB24X21307 | Humidity Sensor |
|
- | |||||
| 29 | WB27X11210 | Thermostat, 160/0 |
|
- | |||||
| 30 | WB27X11212 | Thermostat, 120/0 |
|
- | |||||
| 31 | WB27X11213 | Thermostat 70/40 |
|
- | |||||
| 32 | WB27X11209 | Capacitor |
|
- | |||||
| 33 | WB26X25626 | Ventilation Motor |
|
- | |||||
| 34 | WB10X25607 | Latch Board |
|
- | |||||
| 35 | WB03X10348 | Lever Switch |
|
$ 41.45 | |||||
| 36 | WB24X10204 | Switch Micro |
|
- | |||||
| 37 | WB24X10205 | Switch Micro, Monitor |
|
- | |||||
| 38 | WB18X33545 | Main Harness |
|
- | |||||
| 39 | WB24X10146 | Micro Switch(stand On) |
|
$ 52.99 | |||||
| 41 | WB06X10926 | Lamp Glass Bracket |
|
- | |||||
| 42 | WB06X10928 | Lamp Glass |
|
- | |||||
| 44 | WG02F05544 | Grease Filter (Replaces: WB06X10608) |
|
Immediately | $ 45.83 | ||||
| 45 | WG02F05571 | Installati0n Hardware (Replaces: WB01X10298) |
|
Immediately | $ 82.00 | ||||
| 47 | WG02F13461 | Turn Table Motor (Replaces: WB26X10176) |
|
$ 126.74 | |||||
| 48 | WB26X10179 | Stirrer Fan Motor |
|
- | |||||
| 49 | WB02X25605 | Coupler |
|
- | |||||
| 50 | WG02A00760 | Rotating Ring Asm (Replaces: WB06X10625) |
|
$ 32.88 | |||||
| 51 | WB63X25610 | Tray |
|
- | |||||
| 52 | WB02X25613 | Stirrer Shaft |
|
- | |||||
| 53 | WB34X33693 | Stirrer Cover |
|
- | |||||
| 58 | WB06X10935 | Damper |
|
- | |||||
| 62 | WB06X10938 | Damper Bracket |
|
- | |||||
| 63 | WB34X25621 | Vent Motor Cover |
|
- | |||||
| 64 | WB34X25615 | H.v.capacitor Holder |
|
- | |||||
| 65 | WB02X25612 | Stirrer Fan |
|
- | |||||
| 67 | WB56X33472 | Out Case |
|
- | |||||
| 69 | WB34X25622 | Cavity Lamp Cover |
|
- | |||||
| 71 | WB01X22640 | Nut Assembly |
|
- | |||||
| 73 | WB56X25618 | Mounting Plate |
|
- | |||||
| 74 | WB36X33471 | Heat Deflector |
|
- | |||||
| 133 | WB26X25606 | Fan Asm |
|
- |
