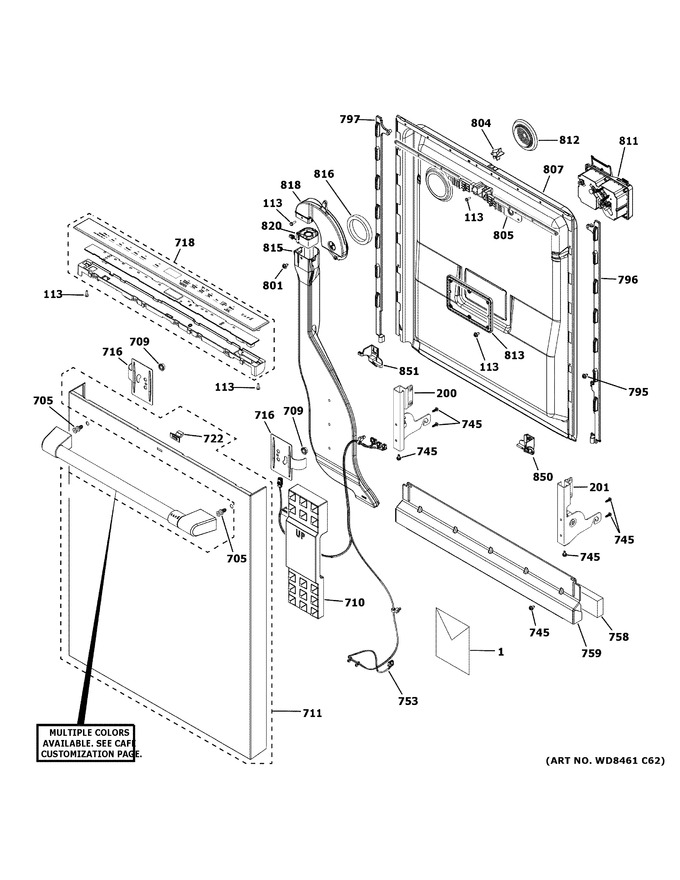

Escutcheon & Door Assembly
Lower Rack Assembly
Sump & Filter Assembly
Sump & Motor Mechanism
Upper Rack Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-4000183 | Pm Mini Manual And Wiring |
|
- | |||||
| 1 | 49-4000042 | Pm Owners Manual |
|
- | |||||
| 1 | 31-31560 | Pm Install Instructions |
|
- | |||||
| 113 | WG04A00176 | Screw 8-16 Hxw 1/2 Ss (Replaces: WD02X10067) |
|
$ 3.57 | |||||
| 200 | WD14X23739 | Arm Hinge Asm Lh |
|
- | |||||
| 201 | WD14X23738 | Arm Hinge Asm Rh |
|
- | |||||
| 705 | WR01A01801 | Door Handle Fastener (Replaces: WR01X11007) |
|
Immediately | $ 11.44 | ||||
| 709 | WD02X25303 | Lock Nut 5/16-18 Hx 1/2 S |
|
- | |||||
| 710 | WD01X10585 | Block Foam Door |
|
- | |||||
| 711 | WD34X25305 | Stainless Steel Caf Outer Door Asm |
|
- | |||||
| 716 | WD01X24918 | Handle Bracket |
|
- | |||||
| 718 | WD21X25657 | Configured Cafe Ui Control With Cover |
|
- | |||||
| 718 | WD21X25386 | Configured Cafe Ui Control With Cover |
|
- | |||||
| 722 | WD01X25302 | Lens And Adhesive Asm |
|
- | |||||
| 745 | WD01X22514 | Scr 10-32 Gx Ihxw 9/16 S |
|
- | |||||
| 753 | WD21X25324 | Door Harness Asm |
|
- | |||||
| 758 | WD27X21334 | Insulation Toe Kick |
|
- | |||||
| 759 | WD27X10392 | Toe Kick Painted Asm |
|
- | |||||
| 780 | WD30X25140 | Inner Door Insulation |
|
- | |||||
| 795 | WD02X22628 | Screw T15 8-16 Plastite 60-1 |
|
- | |||||
| 796 | WD01X22836 | Attach Strip Rh |
|
- | |||||
| 797 | WG04A02187 | Attach Strip (Replaces: WD01X10634) |
|
$ 18.59 | |||||
| 801 | WD02X25303 | Lock Nut 5/16-18 Hx 1/2 S |
|
- | |||||
| 804 | WG04F06693 | Striker Latch (Replaces: WD13X10071) |
|
Immediately | $ 8.58 | ||||
| 805 | WD13X22837 | Attachment Strip Top |
|
- | |||||
| 807 | WD31X22821 | Door Inner Ss |
|
- | |||||
| 811 | WD12X24060 | Detergent Disp Sensor |
|
$ 44.21 | |||||
| 811 | WD12X24058 | Detergent Disp No Sensor |
|
- | |||||
| 812 | WD24X20586 | Cover Vent |
|
- | |||||
| 813 | WD12X10462 | Plate Detergent |
|
- | |||||
| 815 | WD12X20218 | Vent Conduit Asm |
|
- | |||||
| 816 | WG04L01634 | Door Vent Seal (Replaces: WD08X10092) |
|
Immediately | $ 10.01 | ||||
| 818 | WD12X23557 | Transition Piece Asm |
|
- | |||||
| 820 | WD24X25325 | Fan Vent Asm |
|
- | |||||
| 850 | WD12X22835 | Trim Door Rh |
|
- | |||||
| 851 | WD12X22834 | Trim Door Lh |
|
- |
