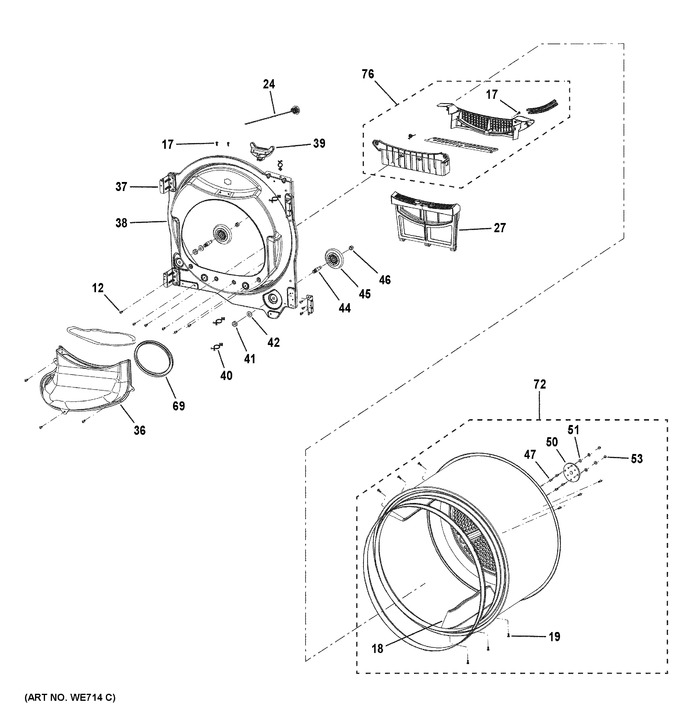

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	WE02X26338		Front Panel Screws		Appelez-nous	-
17	WH02X26247		Screw				$ 1.71
18	WE01X26575		Tub Baffle		Appelez-nous	-
19	WE02X26576		Screw		Appelez-nous	-
24	WE11X27508		Lamp		Appelez-nous	-
27	WE16X28728		Lint Filter		Appelez-nous	-
36	WE13X28735		Front Air Duct		Appelez-nous	-
37	WE13X28710		Front Drum Support Bracket		Appelez-nous	-
38	WE13X28733		Front Drum Support		Appelez-nous	-
39	WE13X28737		Drying Rack Hanger		Appelez-nous	-
40	WE02X28699		Fixed-line Clip		Appelez-nous	-
41	WE02X28700		Nut M10		Appelez-nous	-
42	WE02X28702		Nut M10 Gasket		Appelez-nous	-
44	WE01X28721		Drum Wheel Support Shaft		Appelez-nous	-
45	WE21X26838		Drum Wheel		Appelez-nous	-
46	WE02X28704		Nut M8		Appelez-nous	-
47	WE02X28697		Bolt M6*14		Appelez-nous	-
50	WE13X28725		Flange Plate		Appelez-nous	-
51	WE01X28719		Flat Gasket		Appelez-nous	-
53	WE02X28707		Nut M6		Appelez-nous	-
69	WE05X28708		Front Air Duct Gasket		Appelez-nous	-
72	WE21X28743		Drum Assembly		Appelez-nous	-
76	WE16X28747		Duct Trap Housing		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
