SELECT A DIAGRAM

Case Parts


Freezer Door


Freezer Section


Freezer Shelves


Fresh Food Door


Fresh Food Section


Fresh Food Shelves


Machine Compartment

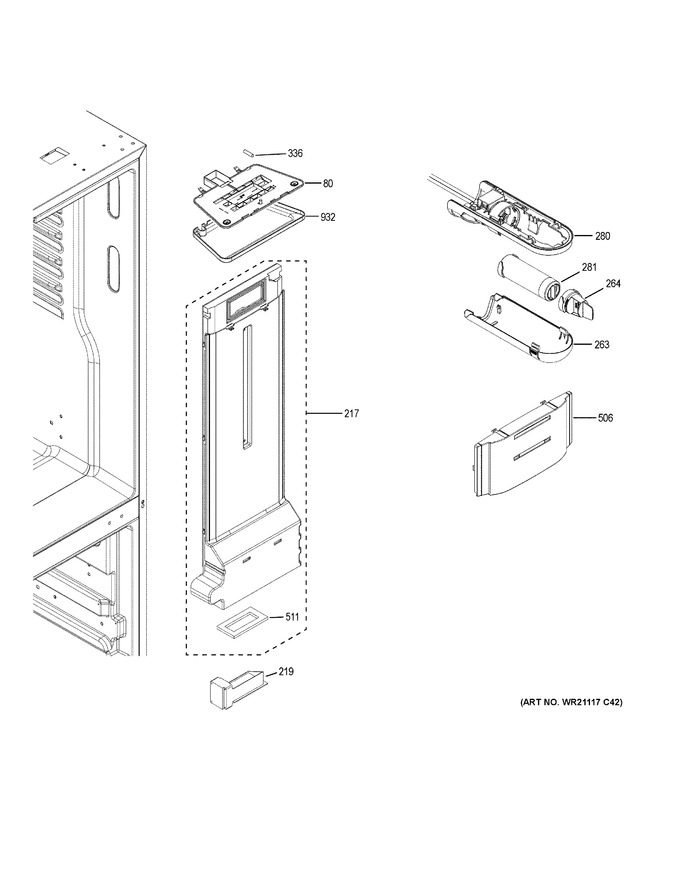

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
80	WR55X30388		Light Housing		Appelez-nous	-
217	WR14X26409		Ff Air Tower 30		Appelez-nous	-
219	WR01F00017		Damper Asm Motorized   (Replaces: WR60X10239)			Immediately	$ 174.47
263	WR17X30148		Xwf Filter Cover		Appelez-nous	-
264	WR17X30044		Bypass Filter Plug		Appelez-nous	-
280	WR14X30263		Xwf Manifold & Housing		Appelez-nous	-
281	WR01F04788		Xwf Retail Filter   (Replaces: XWF)			Immediately	$ 91.70
336	WR01F01730		Sensor Temp Ff   (Replaces: WR55X10025)			Immediately	$ 14.66
506	WR14X29199		Fresh Food Air Tower Grill		Appelez-nous	-
511	WR14X24747		Gasket Tower Ff		Appelez-nous	-
932	WR17X25143		Cover Led Top		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
