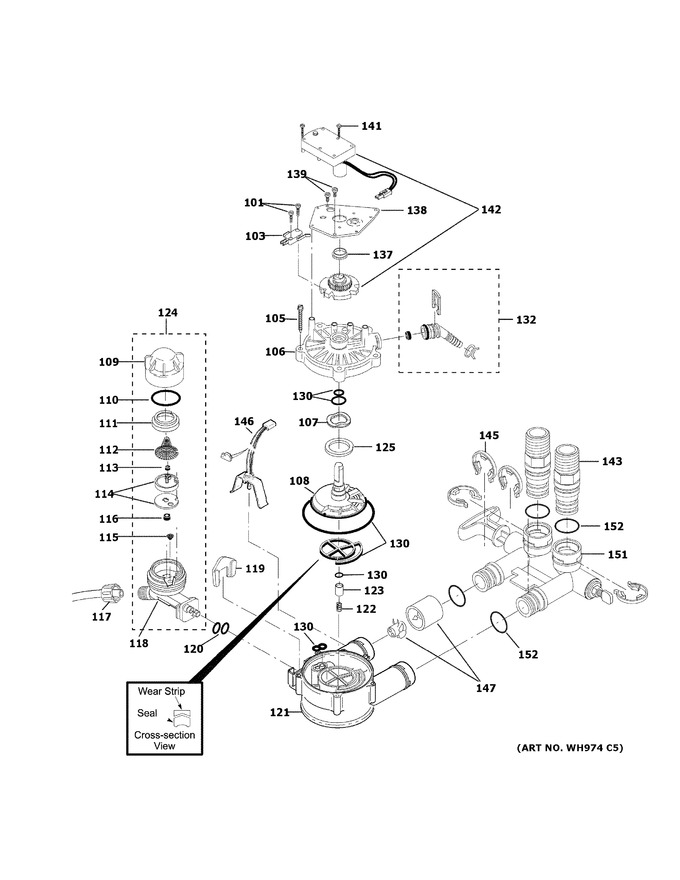

Body Parts


Pump


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
101	WS02X10023		Screw #4-24 X 3/4		Appelez-nous	-
103	WS21X10003		Switch				$ 33.08
105	WS02X10024		Screw #10 X 2 5/8		Appelez-nous	-
106	WS31X10013		Cover Valve		Appelez-nous	-
107	WS03X10034		Washer Wave		Appelez-nous	-
108	WS26X10010		Rotor & Disc				$ 141.93
109	WS19X10010		Cap		Appelez-nous	-
110	WS03X10011		Seal O-ring 1-1x1/4 Inch				$ 13.67
111	WS19X10005		Support Screen		Appelez-nous	-
112	WS03X10013		Screen				$ 17.67
113	WS22X10036		Flow Plug 15 Gpm				$ 19.59
114	WS08X10008		Gasket, Nozzle/vent		Appelez-nous	-
115	WS03X10073		Screen Cone		Appelez-nous	-
116	WS22X10021		Plug Fill Flow 3 Gpm				$ 26.34
117	WS03X10017		Nut Ferrule				$ 12.85
118	WS15X10034		Nozzle/venturi Body				$ 69.04
119	WS03X10018		Retainer				$ 12.85
120	WS03X10019		Seal O-ring 1/4" X 3/8"				$ 3.54
121	WS15X10025		Body Valve				$ 289.96
122	WS03X10020		Spring				$ 6.75
123	WS22X10029		Plug Drain Seal		Appelez-nous	-
124	WS15X10046		Nozzle/vent Asm				$ 109.50
125	WS03X10043		Wave Spring Bearing		Appelez-nous	-
130	WS35X10020		Seal Kit				$ 135.83
132	WS22X10065		Drain Hose Adapter Kit				$ 24.00
137	WS26X10009		Bearing		Appelez-nous	-
138	WS26X10023		Plate Motor		Appelez-nous	-
139	WS02X10028		Screw #6 - 20 X 3/8"		Appelez-nous	-
141	WS02X10058		Screw #8 - 32 X 1		Appelez-nous	-
142	WS26X21821		Motor Cam Gear Assembly				$ 84.44
143	WS60X10011		Adapter-npt Thd-1" Valve				$ 23.56
145	WS60X10008		Clip				$ 3.86
146	WS28X10018		Harness Wire, Sensor Asm		Appelez-nous	-
147	WS26X10030		Turbine & Suppt Asm				$ 91.20
151	WS15X10078		Valve, By Pass Asm				$ 170.83
152	WS03X10072		Seal, O-ring				$ 37.25
