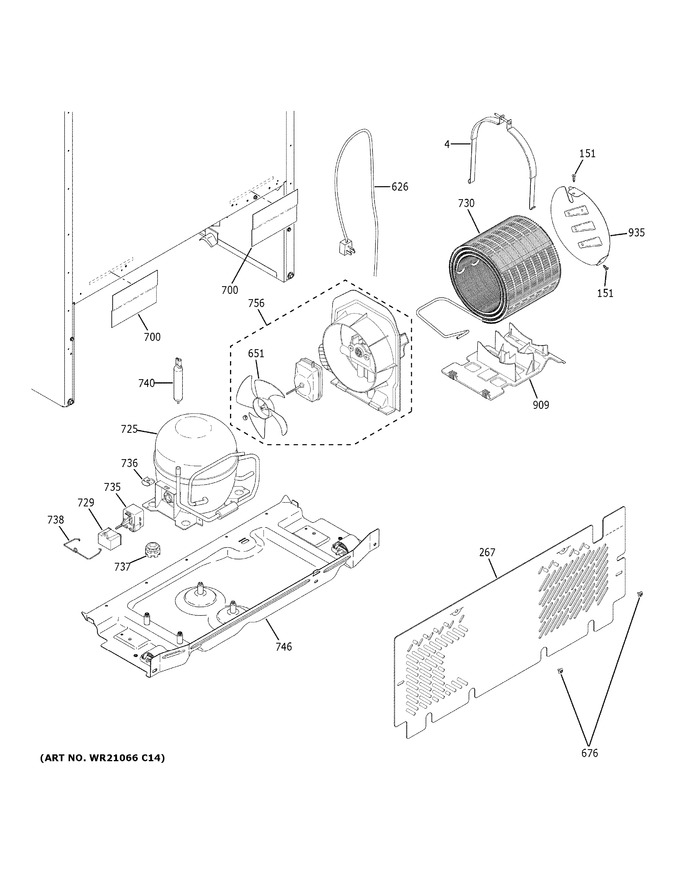

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | WR01X27406 | Strap Cond Asm |
|
- | |||||
| 151 | WD02X10151 | Scr 10-16 Ab 43whex 5/8 |
|
- | |||||
| 267 | WR82X31139 | Rear Access Cover 16 17 18 |
|
- | |||||
| 626 | WR55X31301 | Machine Compartment Harness And Power Co |
|
- | |||||
| 651 | WG03F10555 | Blade Cond Fan Asm (Replaces: WR60X10207) |
|
Immediately | $ 17.47 | ||||
| 676 | WZ04X0263 | Scr 10-16 Ab Hxw 1/2 |
|
- | |||||
| 700 | WR29X31127 | Water Diverter |
|
- | |||||
| 725 | WR87X31296 | Compressor |
|
- | |||||
| 729 | WR55X31290 | Capacitor |
|
- | |||||
| 730 | WR84X31745 | Condenser |
|
- | |||||
| 735 | WR55X31115 | Ol Ptcr Combo |
|
$ 25.02 | |||||
| 736 | WR02X28781 | Compressor Mounting Clip |
|
- | |||||
| 737 | WR02X22869 | Grommet |
|
- | |||||
| 738 | WR02X26153 | Clip Retainer Mei |
|
- | |||||
| 740 | WG03A03157 | P/s Dryer Kit R134a (Replaces: WR86X96) |
|
Immediately | $ 153.40 | ||||
| 746 | WR17X30073 | Baseplate And Stud Assembly |
|
- | |||||
| 756 | WR17X21162 | Fan Housing Asm |
|
$ 115.45 | |||||
| 909 | WR02X21166 | Support Condenser |
|
- | |||||
| 935 | WR17X21164 | Baffle Condenser |
|
- |
