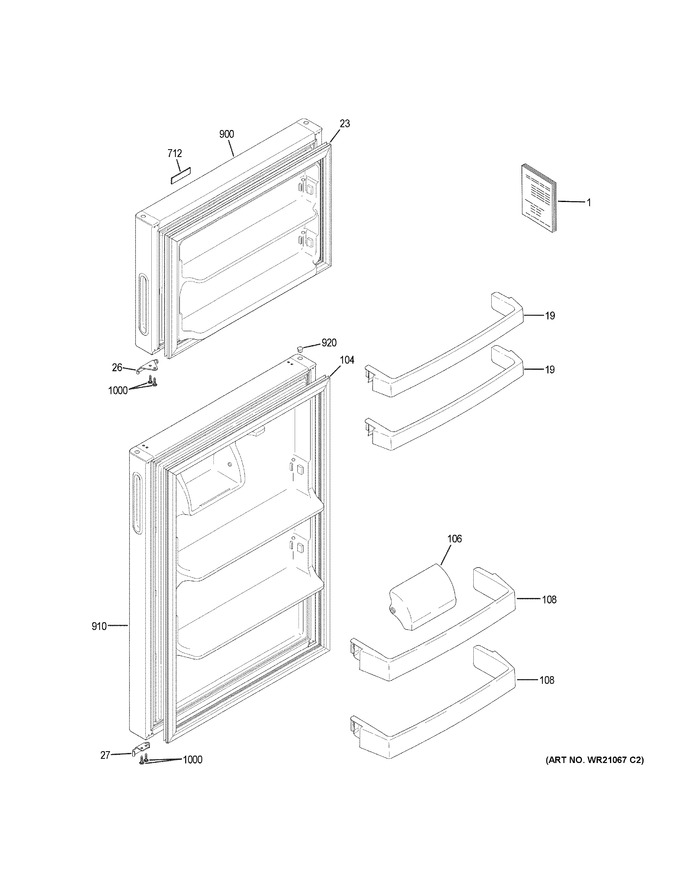

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-1000309 | Pm Mini Manual And Wiring |
|
- | |||||
| 19 | WR71X21149 | Shelf Fixed Fz |
|
- | |||||
| 23 | WR14X27234 | Gasket Door Fz Dg |
|
- | |||||
| 26 | WR02X28288 | Freezer Door Stop Black |
|
- | |||||
| 27 | WR02X28284 | Refrigerator Door Stop Black |
|
- | |||||
| 104 | WR14X27237 | Gasket Door Ff Dg |
|
- | |||||
| 106 | WR22X28070 | Refrigerator Dairy Door |
|
- | |||||
| 108 | WR17X21154 | Shelf Fixed Ff |
|
- | |||||
| 712 | WR02X21201 | Badge Asm Hp |
|
- | |||||
| 900 | WR78X21206 | Door Foam Asm Fz |
|
- | |||||
| 910 | WR78X21205 | Door Foam Asm Ff |
|
- | |||||
| 920 | WR02X11774 | Plug Button Thimble |
|
- | |||||
| 1000 | WR01X21151 | Scr 10-16 Ab Trp 3/4 Nbs |
|
- |
