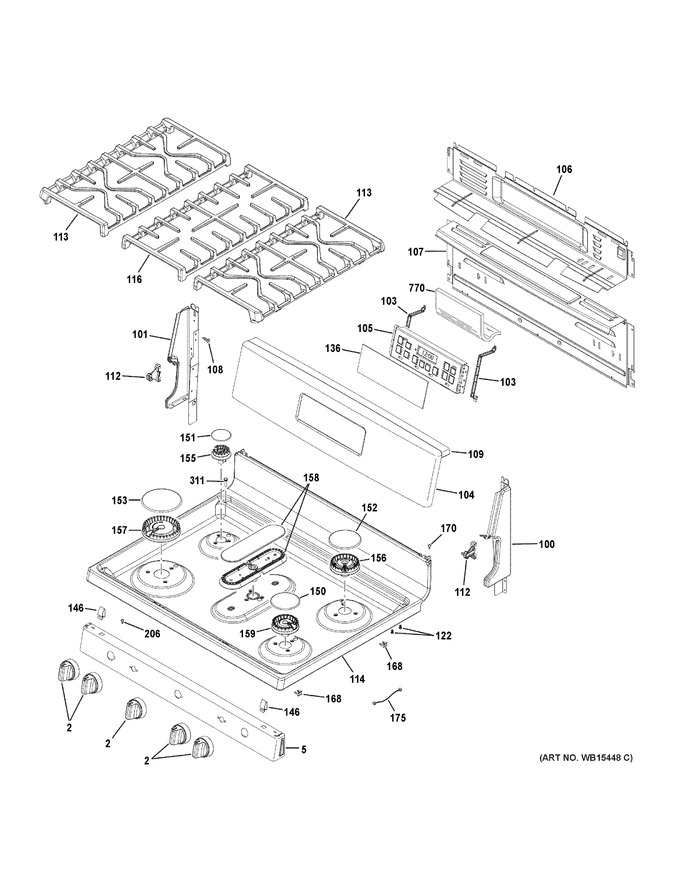

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WS01L13900 | Knob Asm (Replaces: WB03X24818) |
|
Immediately | $ 23.53 | ||||
| 5 | WB36X32657 | Stainless Steel Manifold Panel |
|
- | |||||
| 19 | WB01K10094 | Black Cable Tie 5 1/2 Long 1/8 Wide |
|
- | |||||
| 100 | WB07X29143 | End Support Dd Rh |
|
- | |||||
| 101 | WB07X29144 | End Support Dd Lh |
|
- | |||||
| 103 | WB02X24845 | Bracket Control |
|
- | |||||
| 104 | WB36X25218 | Backguard Range |
|
- | |||||
| 105 | WB27X29139 | Control Oven To9 White Led |
|
- | |||||
| 106 | WB34X24851 | Cover Back Upper |
|
- | |||||
| 107 | WB34X24746 | Cover Back Lower |
|
- | |||||
| 108 | WS01A01150 | Screw (cr) (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 109 | WB34X24960 | Top Complement Backguard |
|
- | |||||
| 109 | WB34X29145 | Top Complement Backguard Dd |
|
- | |||||
| 112 | WB14K10003 | Hinge Range Top |
|
- | |||||
| 113 | WB31X24736 | Grate Asm |
|
- | |||||
| 114 | WB62X24822 | Rangetop & Brkt Asm |
|
- | |||||
| 116 | WS01L13840 | Central Grate (Replaces: WB31X24737) |
|
Immediately | $ 110.54 | ||||
| 122 | WB01X24735 | Ckt Screw |
|
- | |||||
| 136 | WB07X25217 | Overlay T09 |
|
- | |||||
| 146 | WB02X26569 | Clip Rangetop |
|
- | |||||
| 150 | WS01F02536 | Asm Burner Cap (9500) (Replaces: WB29K10023) |
|
Immediately | $ 17.47 | ||||
| 151 | WB16X28654 | Asm. Cap, Burner Small V2 |
|
$ 28.45 | |||||
| 152 | WS01F03894 | Asm Burner Cap (12000) (Replaces: WB29K10024) |
|
Immediately | $ 23.82 | ||||
| 153 | WS01F02544 | Cap Burner Xl (Replaces: WB28K10222) |
|
Immediately | $ 18.43 | ||||
| 155 | WB16X24721 | Burner, Small V2 |
|
- | |||||
| 156 | WB16X24723 | Burner, Large V2 |
|
- | |||||
| 157 | WB16X24722 | Burner, Xl V2 |
|
- | |||||
| 158 | WS01F02148 | Oval Burner Asm (Replaces: WB16K10076) |
|
Immediately | $ 75.70 | ||||
| 159 | WB16X24724 | Burner, Medium V2 |
|
- | |||||
| 168 | WB02X24976 | Clip, Igniter V2 |
|
- | |||||
| 170 | WB1X5754 | Screw 8-18 Abt 1/2 S |
|
- | |||||
| 175 | WB18X24748 | Harness Ground |
|
- | |||||
| 206 | WS01A01151 | Screw (Replaces: WB01K10091) |
|
Immediately | $ 12.71 | ||||
| 311 | WB02X24790 | Bumper |
|
- | |||||
| 770 | WB35K10040 | Insulation Control |
|
- | |||||
| 1151 | WB18X32416 | Harness Control |
|
- |
