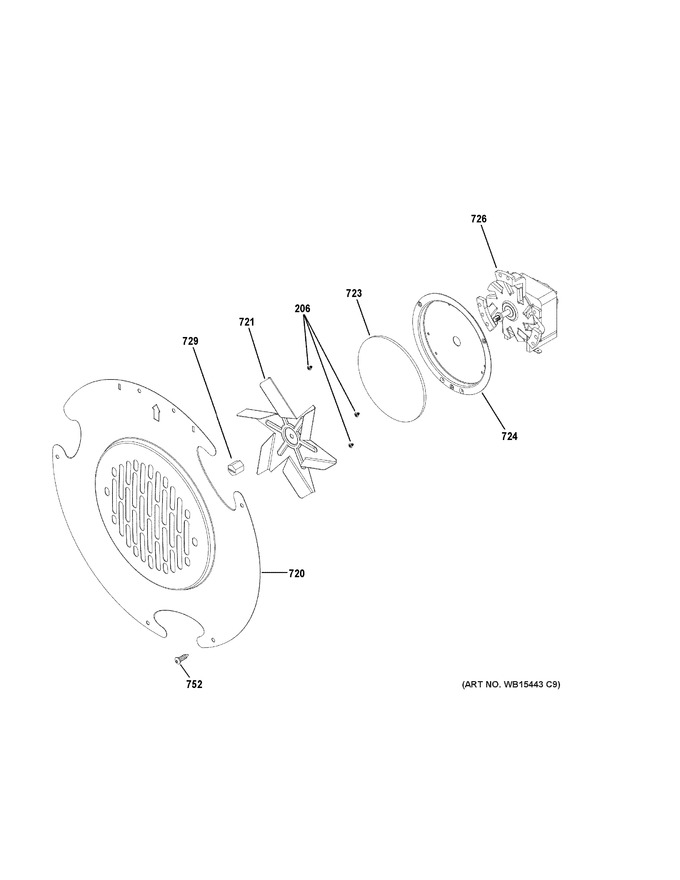

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 206 | WS01A01151 | Screw (Replaces: WB01K10091) |
|
Immediately | $ 12.71 | ||||
| 720 | WS01L01488 | Fan Cover Front (Replaces: WB34K10037) |
|
$ 50.22 | |||||
| 721 | WB2X8351 | Fan Blade |
|
- | |||||
| 723 | WB35K10013 | Fan Insulation |
|
- | |||||
| 724 | WB02K10034 | Fan Support |
|
- | |||||
| 726 | WB26X28953 | Fan Motor Convect |
|
- | |||||
| 729 | WS01A01105 | Nut (Replaces: WB02T10017) |
|
Immediately | $ 9.50 | ||||
| 752 | WZ04X0345 | Screw 8-18x5/8 Hxw |
|
- |
