Hood Assembly

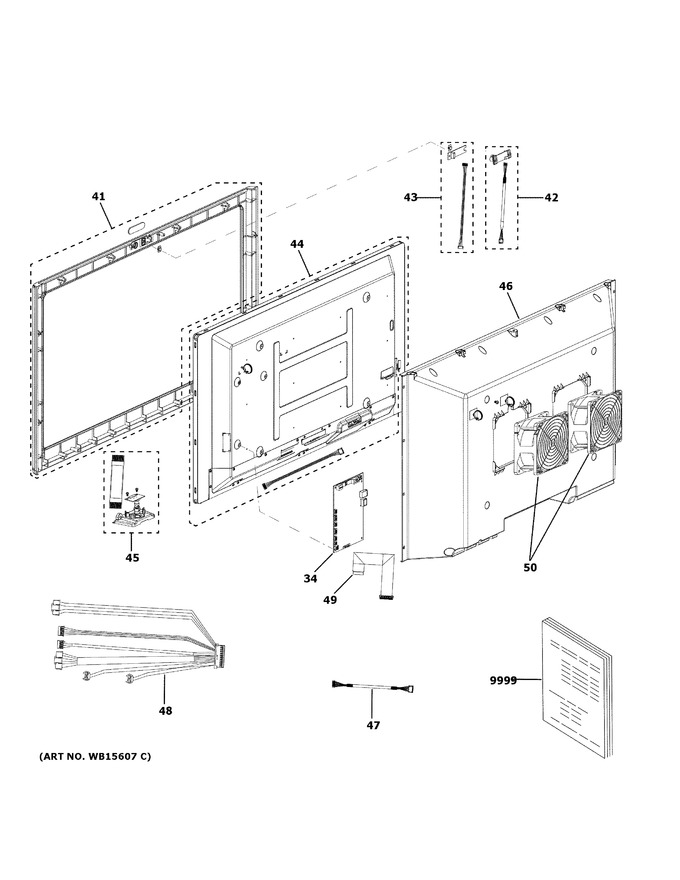

Touch Screen Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 34 | WB27X33258 | Pbc Android Board |
|
- | |||||
| 41 | WB56X33192 | Front Panel Assembly Black Stainless |
|
- | |||||
| 42 | WB02X33189 | Front Camera Assembly |
|
- | |||||
| 43 | WB25X33200 | Motion And Light Sensor Assembly |
|
- | |||||
| 44 | WB02X33212 | Touch Screen Assembly |
|
- | |||||
| 45 | WB27X33202 | Pcb Down Facing Camera Assembly |
|
- | |||||
| 46 | WB36X33219 | Rear Panel Cover Housing |
|
- | |||||
| 47 | WB18X33203 | Harness Microphone |
|
- | |||||
| 48 | WB18X33213 | Power Harness & Blacklit |
|
- | |||||
| 49 | WB18X33196 | Harness Lcd To Android Board |
|
- | |||||
| 50 | WB02X33215 | Cooling Fan |
|
- | |||||
| 9999 | 31-2000332 | Pm Template |
|
- | |||||
| 9999 | 49-2000492 | Pm Owners And Install |
|
- |
