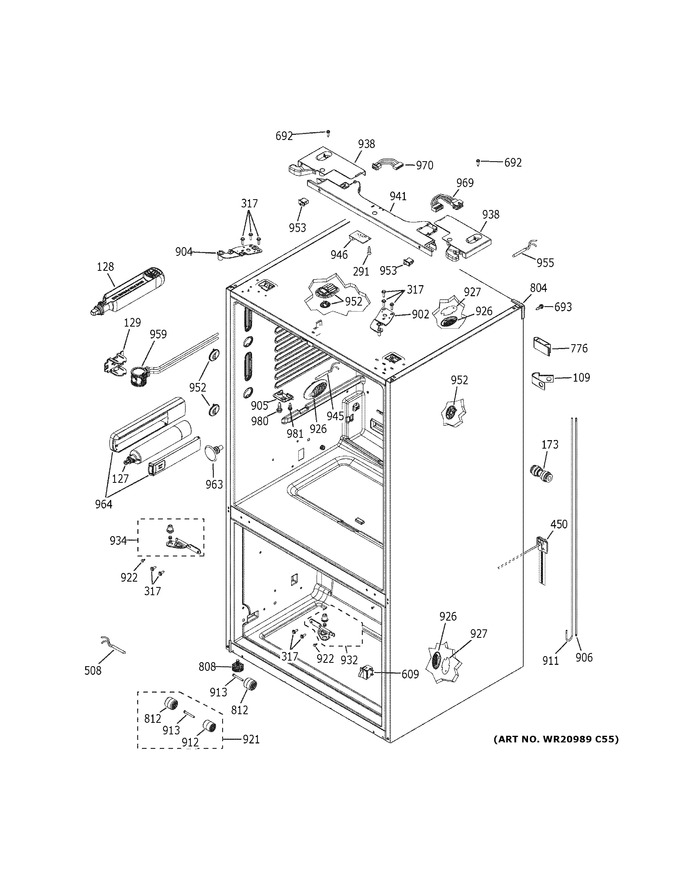

Case Parts
Freezer Door
Freezer Section
Freezer Shelves
Fresh Food Door - Lh
Fresh Food Door - Rh
Fresh Food Section
Fresh Food Shelves
Machine Compartment
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 109 | WR01X11064 | Clip Phgl |
|
- | |||||
| 127 | WG03F04947 | Refer Water Filter (rfid) (Replaces: RPWFE) |
|
Immediately | $ 101.21 | ||||
| 128 | WG03A02699 | Plug Bypass Rfid Asm (Replaces: WR17X23645) |
|
Immediately | $ 86.32 | ||||
| 129 | WR17X13069 | Brkt Filter Manifold |
|
- | |||||
| 173 | WR02X13738 | Coupler Straight 1/4 |
|
- | |||||
| 291 | WR01X10649 | Scr 8-10 Pl Pnp 1/2 S |
|
- | |||||
| 317 | WR01X11049 | Scr 1/4-20 Hxw 7/8 S |
|
- | |||||
| 450 | WR02X20621 | Tube Fz Im Fill Htr Asm |
|
- | |||||
| 508 | WR55X11151 | Sensor Temperature |
|
- | |||||
| 609 | WG03F09086 | Switch Light (Replaces: WR23X10143) |
|
Immediately | $ 11.12 | ||||
| 692 | WZ04X0416 | Scr 8-18 Ab Hxw 3/4 |
|
- | |||||
| 693 | WR01X10593 | Scr 8-18 Ab Ihxw 3/4 S |
|
- | |||||
| 776 | WG03A00749 | Clamp Tube (Replaces: WR02X10522) |
|
$ 9.25 | |||||
| 804 | WR02X13759 | Cap Case Corner Asm Dgy |
|
- | |||||
| 808 | WR01X11046 | Screw Leveling Asm |
|
- | |||||
| 812 | WR02X13694 | Wheel Overmold Asm Rear |
|
- | |||||
| 902 | WR13X25910 | Hinge Top Pin Asm Rh |
|
- | |||||
| 904 | WR13X25911 | Hinge Top Pin Asm Lh |
|
- | |||||
| 905 | WR01X31733 | Mullion Striker |
|
- | |||||
| 906 | WR02X13699 | Tube Pex Mc Valve |
|
- | |||||
| 911 | WR02X13673 | Tubing Pex 55.3 In |
|
- | |||||
| 912 | WR02X13685 | Wheel |
|
- | |||||
| 913 | WR01X11008 | Axle Wheel |
|
- | |||||
| 921 | WR49X10268 | Front/rear Wheel & Axle |
|
- | |||||
| 922 | WR01X26257 | Scr 8-32 Hxw 3/4 S |
|
- | |||||
| 926 | WG03F02951 | Grille Thermistor (Replaces: WR02X13729) |
|
$ 6.09 | |||||
| 927 | WR01X11066 | Shunt Sensor |
|
- | |||||
| 932 | WR13X32036 | Refrigerator Center Hinge Right |
|
- | |||||
| 934 | WR13X32039 | Refrigerator Center Hinge Left |
|
- | |||||
| 938 | WR17X20164 | Hinge Endcap Asm Dgy |
|
- | |||||
| 941 | WR17X13217 | Top Cover Middle Dgy |
|
- | |||||
| 945 | WR55X11150 | Sensor Temperature |
|
- | |||||
| 946 | WR55X24585 | Pcb Asm Humidity Board |
|
- | |||||
| 952 | WR55X48388 | Fresh Food Led White |
|
- | |||||
| 952 | WR55X25754 | Cover Led Ff Asm Ww |
|
- | |||||
| 953 | WR23X29162 | Fresh Food Door Light Switch |
|
- | |||||
| 955 | WR55X11153 | Sensor Temperature |
|
- | |||||
| 959 | WG03F03829 | Filter Manifold (Replaces: WR02X13684) |
|
Immediately | $ 127.19 | ||||
| 963 | WR02X13760 | Grommet Ff Liner |
|
- | |||||
| 964 | WR02X26526 | Cover Water Filter Asm |
|
- | |||||
| 969 | WR23X29160 | Ac Door Switch Harness |
|
- | |||||
| 970 | WR23X10777 | Harness Door Case |
|
- | |||||
| 980 | WR01X24387 | Scr 8-18 Ab Hxwp 9/16s |
|
- | |||||
| 981 | WR01X24402 | Scr 8-18 Ab Flp 3/4 S Zn |
|
- |
