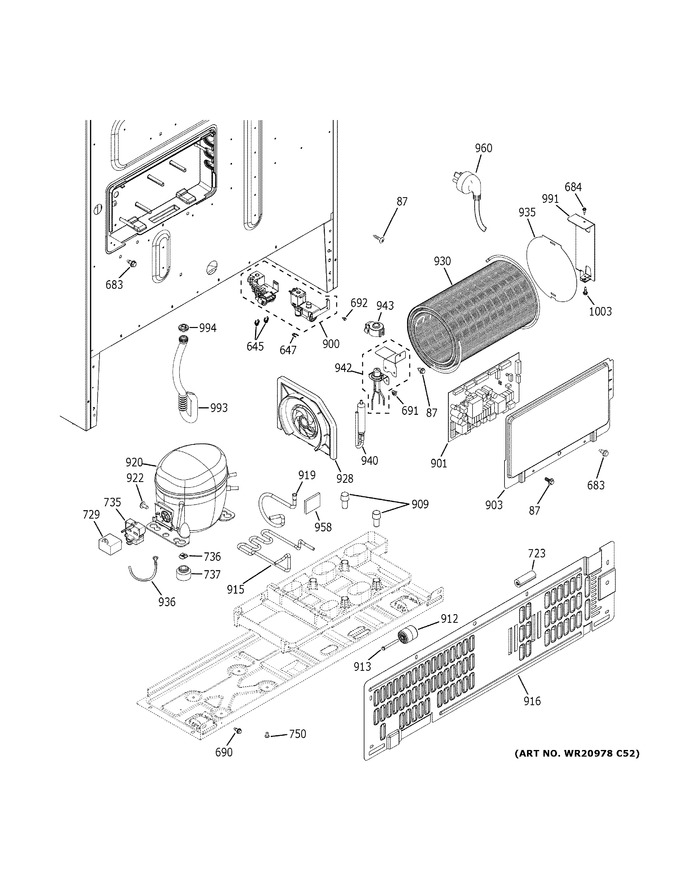

Machine Compartment
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 87 | WR01A00683 | Scr 8-18 Ab Ihxw 9/16 S (Replaces: WR01X10588) |
|
$ 3.97 | |||||
| 645 | WR01X11020 | Clip Connector 1/4 |
|
- | |||||
| 647 | WR01X11041 | Quick Clip Connector 1/4 |
|
- | |||||
| 683 | WR01X10602 | Scr 8-32 Ab Ihws 3/8 S |
|
- | |||||
| 684 | WR01X10635 | Scr 8-32 Ca Ihxw .625 S |
|
- | |||||
| 690 | WZ05X0158 | Screw 8-32x3/8 Grd Scr |
|
- | |||||
| 691 | WR01X10897 | Scr 12-24tt Bht20 .700 S |
|
- | |||||
| 692 | WZ04X0416 | Scr 8-18 Ab Hxw 3/4 |
|
- | |||||
| 723 | WR14X10055 | Grommet Tubing Slit |
|
- | |||||
| 729 | WR55X30629 | Capacitor |
|
- | |||||
| 735 | WR08X22874 | Tsd Combo |
|
- | |||||
| 736 | WR02X28299 | Compressor Mounting Clip |
|
- | |||||
| 737 | WR02X13719 | Grommet Compressor |
|
- | |||||
| 750 | WR01X28928 | Screw 10-32 Trt-20 1/2 S |
|
- | |||||
| 900 | WR57X27527 | Valve Double Im Asm |
|
- | |||||
| 901 | WR55X31701 | Refrigerator Main Control Board |
|
- | |||||
| 903 | WR02X25126 | Cover Mainboard |
|
- | |||||
| 909 | WR02X13668 | Support Condenser |
|
- | |||||
| 912 | WR02X13685 | Wheel |
|
- | |||||
| 913 | WR01X11008 | Axle Wheel |
|
- | |||||
| 915 | WR84X29154 | Compressor Discharge Jumper Tube |
|
- | |||||
| 916 | WR82X27468 | Cover Access |
|
- | |||||
| 919 | WR84X27946 | Jumper Compressor Suction Tube |
|
- | |||||
| 920 | WR87X29155 | Refrigerator Compressor |
|
- | |||||
| 922 | WR01X26257 | Scr 8-32 Hxw 3/4 S |
|
- | |||||
| 928 | WR60X23363 | Fan Gasket Asm |
|
- | |||||
| 930 | WR84X10115 | Condenser Asm Formed |
|
- | |||||
| 935 | WR17X13045 | Baffle Cond Air |
|
- | |||||
| 936 | WR23X10748 | Harness Ground |
|
- | |||||
| 940 | WR86X10089 | Dryer Filter |
|
- | |||||
| 942 | WR86X10094 | Valve Body Asm |
|
- | |||||
| 943 | WR86X10091 | Coil 3 Way Valve |
|
- | |||||
| 958 | WR02X13724 | Mastic Sound Deadening |
|
- | |||||
| 960 | WR23X24389 | Harness Power Cord |
|
- | |||||
| 991 | WR02X13622 | Bracket Condenser |
|
- | |||||
| 993 | WR02X28514 | Refrigerator Drain Tube |
|
- | |||||
| 994 | WR01X28515 | Refrigerator Drain Vacuum Break Valve |
|
- | |||||
| 1003 | WR01X10618 | Scr 8-18 Tpt 1/4 |
|
- |
