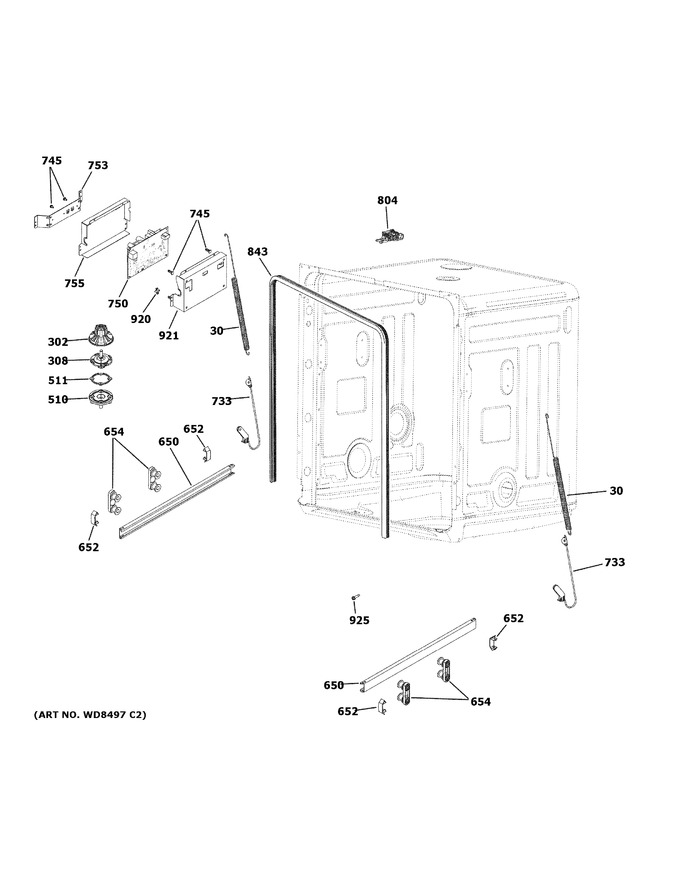

Body Parts (1)
Body Parts (2)
Escutcheon & Door Assembly
Motor-pump Mechanism
Rack Assemblies
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 30 | WD02X28678 | Door Spring |
|
- | |||||
| 30 | WD02X24734 | Door Spring |
|
- | |||||
| 100 | WD24X27560 | Vent Funnel Asm |
|
- | |||||
| 101 | WD08X27559 | Vent Funnel Gasket |
|
- | |||||
| 102 | WD12X27561 | Vent Funnel Inlet Nut |
|
- | |||||
| 302 | WD12X24658 | Flood Float Cover |
|
- | |||||
| 308 | WD12X24657 | Flood Float & Switch Asm |
|
- | |||||
| 510 | WD12X24659 | Flood Float Stem |
|
- | |||||
| 511 | WD08X24660 | Flood Float Stem Gasket |
|
- | |||||
| 650 | WD30X25805 | Upper Rack Slide |
|
- | |||||
| 652 | WD12X24354 | Rack Slide End Cap |
|
$ 14.99 | |||||
| 654 | WD30X24688 | Rack Slide Support |
|
- | |||||
| 733 | WD02X24746 | Pulley Cable Assembly |
|
- | |||||
| 745 | WD02X24609 | Screw |
|
- | |||||
| 747 | WD21X24482 | Control Board Fuse 3.1a |
|
- | |||||
| 750 | WD21X24676 | Main Control Board |
|
- | |||||
| 753 | WD01X24634 | Control Box Bracket |
|
- | |||||
| 755 | WD01X24635 | Control Box Front |
|
- | |||||
| 804 | WD12X24648 | Door Striker Asm |
|
- | |||||
| 843 | WD08X24750 | Tub Gasket |
|
- | |||||
| 920 | WD02X24632 | Control Board Clip |
|
- | |||||
| 921 | WD01X24633 | Control Box Back |
|
- | |||||
| 925 | WD02X24614 | Ground Screw |
|
- |
