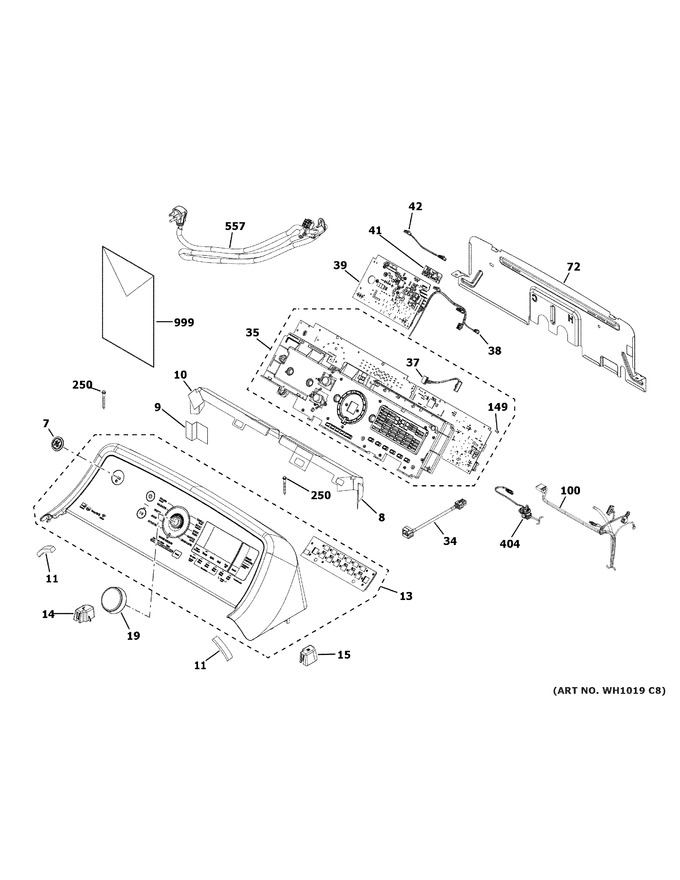

SELECT A DIAGRAM
Cabinet
Controls & Backsplash
Top Panel & Lid
Tub & Motor
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | WH01X29417 | Ge Badge |
|
- | |||||
| 8 | WH01X29420 | Cover Housing |
|
- | |||||
| 9 | WH01X29419 | Cover Housing |
|
- | |||||
| 10 | WH01X29418 | Cover Housing |
|
- | |||||
| 11 | WH08X24099 | Backsplash Foam Seal |
|
- | |||||
| 13 | WH22X29072 | Control Panel Diamond Gray |
|
- | |||||
| 14 | WH16X24095 | Left Backsplash Support |
|
- | |||||
| 15 | WH16X24096 | Right Backsplash Support |
|
- | |||||
| 19 | WH01X28943 | Selector Knob |
|
- | |||||
| 34 | WH08X29137 | Rj45 Harness |
|
- | |||||
| 35 | WH22X29502 | Main Board 840/845 Service |
|
- | |||||
| 37 | WH08X29065 | Ui Jumper Harness |
|
- | |||||
| 38 | WH08X29048 | Inverter Jumper Harness |
|
- | |||||
| 39 | WH22X29049 | Inverter Board |
|
- | |||||
| 41 | WH22X33297 | Wifi Board W/instructions |
|
- | |||||
| 41 | WH22X29073 | Connected Wifi Board |
|
- | |||||
| 42 | WH08X29075 | Wifi Jumper Harness |
|
- | |||||
| 72 | WH10X28194 | Panel Rear Control |
|
- | |||||
| 100 | WH08X29066 | Main Harness Purple |
|
- | |||||
| 149 | WG03A00428 | Screw 8-18 Hi/lo 5/8 (Replaces: WR01X10196) |
|
$ 4.20 | |||||
| 250 | WR01X10634 | Scr 8-18 Ab 13/4 S Hxw |
|
- | |||||
| 404 | WH19X24141 | Lid Lock Harness |
|
- | |||||
| 557 | WH19X24142 | Power Cord |
|
- | |||||
| 999 | 49-3000187 | Pm Owners And Install |
|
- | |||||
| 999 | 49-3000189 | Pm Quick Owners Manual |
|
- | |||||
| 999 | 31-3000190 | Pm Mini Manual And Wiring |
|
- | |||||
| 999 | 49-3000295 | Pm Owners And Install |
|
- | |||||
| 999 | 31-3000374 | Pm Mini Manual And Wiring |
|
- |
