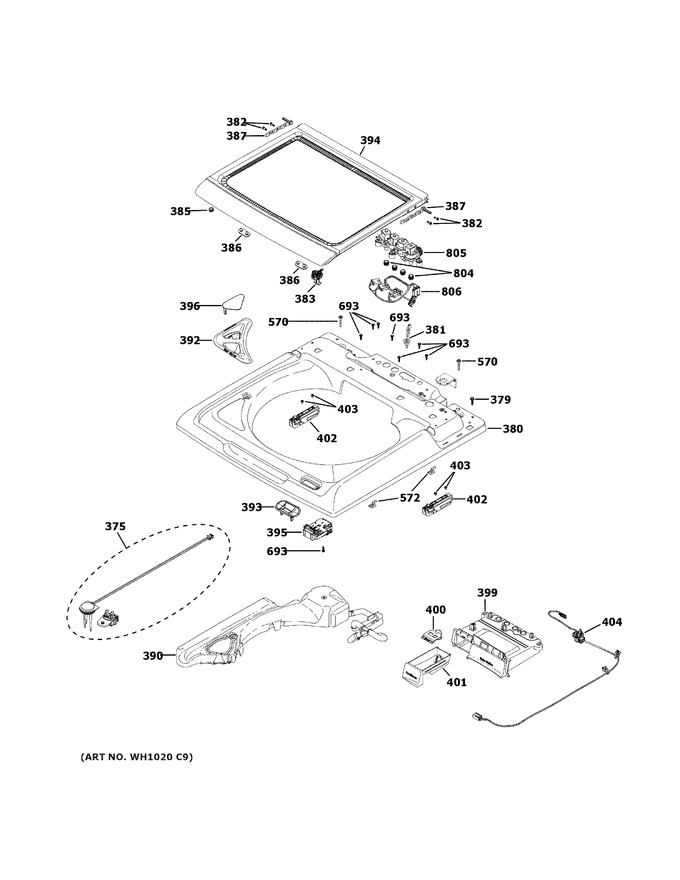

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
375	WH04X29157		Level Sensor		Appelez-nous	-
379	WE02X10107		Scr 10-32 Gx Hxw 7/16 S		Appelez-nous	-
380	WH44X26696		Top Cover		Appelez-nous	-
381	WH01X24104		Thermistor Assembly		Appelez-nous	-
382	WH02X26588		Foot And Base		Appelez-nous	-
383	WH02X24106		Lid Lock Striker		Appelez-nous	-
385	WH01X24108		Lid Front Corner Bumper		Appelez-nous	-
386	WH01X24110		Lid Center Bumper		Appelez-nous	-
387	WH01X24111		Lid Lever Arm		Appelez-nous	-
390	WH42X29069		Bulk Tank Aspirator		Appelez-nous	-
392	WH47X26777		Funnel Bezel Dispense		Appelez-nous	-
393	WH01X26694		Bezel Lid Lock		Appelez-nous	-
394	WH44X26695		Glass Frame Asm Xl Lid		Appelez-nous	-
395	WG04F13269		Lid Lock Quick Release   (Replaces: WH01X27954)			Immediately	$ 154.98
396	WH47X26778		Lid Bezel Dispense		Appelez-nous	-
399	WH42X29070		Smart Dispense Box		Appelez-nous	-
400	WH47X24137		Dispenser Siphon Cap		Appelez-nous	-
401	WH47X26798		Drawer Fabric Softener		Appelez-nous	-
402	WH02X24139		Lid Hinge		Appelez-nous	-
403	WH02X24140		Lid Hinge Screw		Appelez-nous	-
404	WH19X24141		Lid Lock Harness		Appelez-nous	-
570	WH02X24116		Scr 10-32 Gx 1.309 Hwx S		Appelez-nous	-
572	WH02X24143		Lid Lock Harness Clip		Appelez-nous	-
693	WH02X24057		Scr 8-16 Plastite Hxw 5/8		Appelez-nous	-
804	WH13X24094		Water Valve Seal		Appelez-nous	-
805	WH13X26637		Valve Quad Water Asm				$ 155.15
806	WH19X24056		Water Valve Harness		Appelez-nous	-
806	WH08X29860		Water Valve Harness		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
