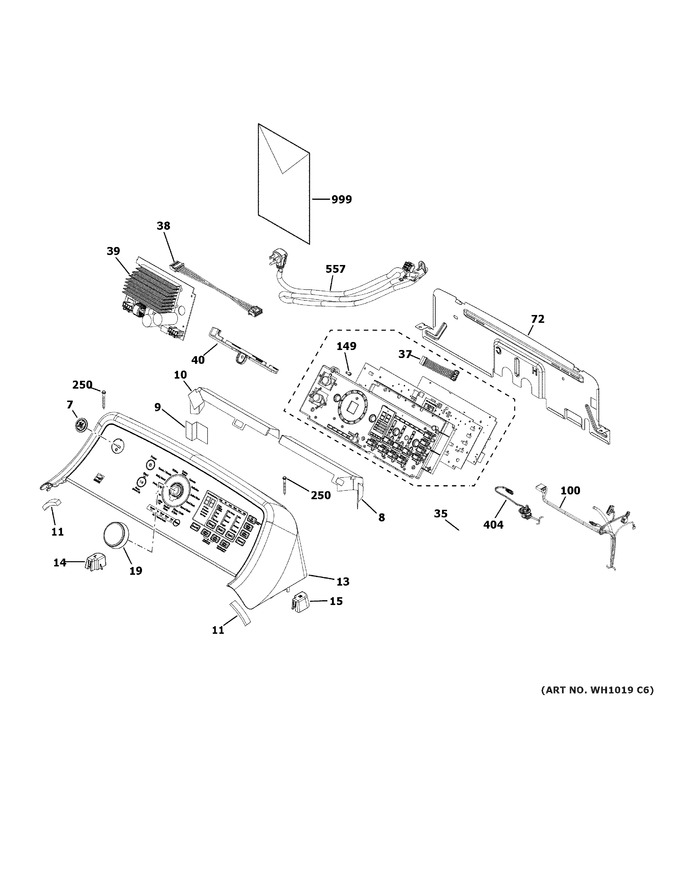

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	WH01X29417		Ge Badge		Appelez-nous	-
8	WH01X29420		Cover Housing		Appelez-nous	-
9	WH01X29419		Cover Housing		Appelez-nous	-
10	WH01X29418		Cover Housing		Appelez-nous	-
11	WH01X28941		Backsplash Foam Block		Appelez-nous	-
13	WH22X28942		Control Panel White		Appelez-nous	-
14	WH16X24095		Left Backsplash Support		Appelez-nous	-
15	WH16X24096		Right Backsplash Support		Appelez-nous	-
19	WH01X28943		Selector Knob		Appelez-nous	-
35	WH22X29501		Main Board 720/725 Service		Appelez-nous	-
37	WH19X24055		Ui Jumper Harness		Appelez-nous	-
38	WH08X29048		Inverter Jumper Harness		Appelez-nous	-
39	WH22X29049		Inverter Board		Appelez-nous	-
40	WH13X29578		Inverter Mounting Bracket		Appelez-nous	-
72	WH10X28194		Panel Rear Control		Appelez-nous	-
100	WH08X28944		Main Harness Orange 4.8		Appelez-nous	-
149	WG03A00428		Screw 8-18 Hi/lo 5/8   (Replaces: WR01X10196)				$ 4.20
250	WR01X10634		Scr 8-18 Ab 13/4 S Hxw		Appelez-nous	-
404	WH19X24141		Lid Lock Harness		Appelez-nous	-
557	WH19X24142		Power Cord		Appelez-nous	-
999	49-3000189		Pm Quick Owners Manual		Appelez-nous	-
999	31-3000374		Pm Mini Manual And Wiring		Appelez-nous	-
999	49-3000187		Pm Owners And Install		Appelez-nous	-
999	31-3000190		Pm Mini Manual And Wiring		Appelez-nous	-
999	49-3000295		Pm Owners And Install		Appelez-nous	-
