SELECT A DIAGRAM
Doors
Freezer Section
Fresh Food Section
Fresh Food Shelves
Ice Maker
Lokring Connectors
Machine Compartment
SELECT A DIAGRAM
New Model Search:

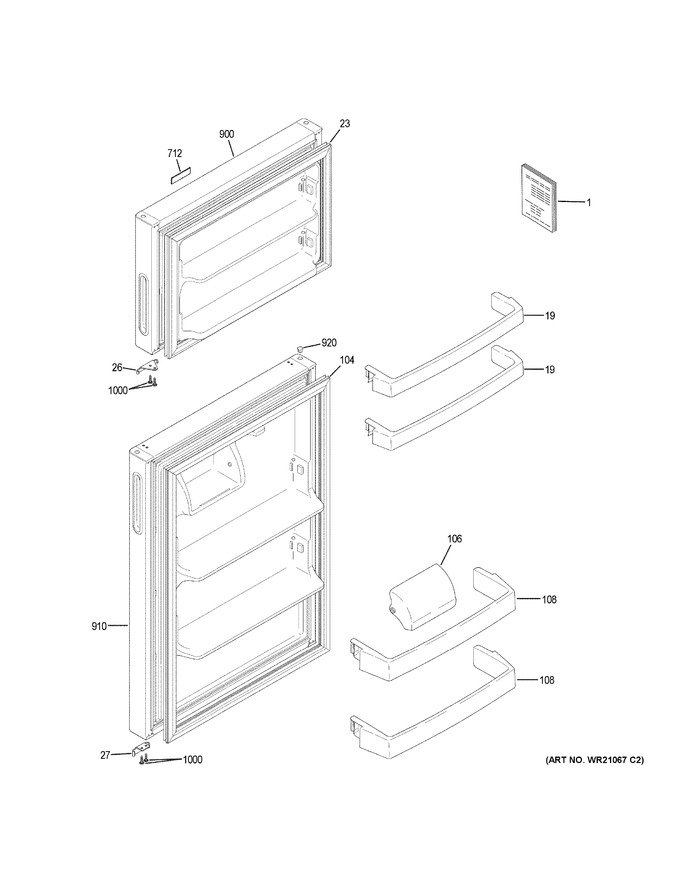

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-1000392 | Pm Mini Manual And Wiring |
|
- | |||||
| 2 | WR12X34565 | White Pocket Handle |
|
- | |||||
| 19 | WR71X21149 | Shelf Fixed Fz |
|
- | |||||
| 23 | WR14X27230 | Gasket Door Fz Ww |
|
- | |||||
| 26 | WR02X28287 | Freezer Door Stop White |
|
- | |||||
| 27 | WR02X28283 | Refrigerator Door Stop White |
|
- | |||||
| 104 | WR14X27233 | Gasket Door Ff Ww |
|
- | |||||
| 106 | WR22X28070 | Refrigerator Dairy Door |
|
- | |||||
| 108 | WR17X21154 | Shelf Fixed Ff |
|
- | |||||
| 712 | WR02X21201 | Badge Asm Hp |
|
- | |||||
| 900 | WR78X22909 | Door Foam Asm Fz Ww |
|
- | |||||
| 910 | WR78X31217 | White Fresh Food Pocket Door 16 |
|
- | |||||
| 920 | WR2X8233 | Plug Btn Wht |
|
- | |||||
| 1000 | WR01X21151 | Scr 10-16 Ab Trp 3/4 Nbs |
|
- |
