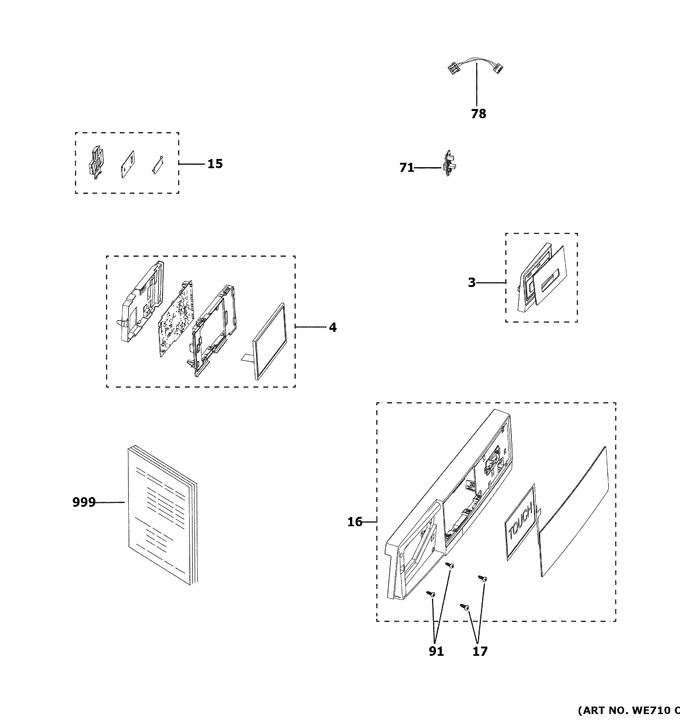

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | WE01X29235 | Condenser Tank Handle |
|
- | |||||
| 4 | WE22X29233 | User Interface Board & Display |
|
- | |||||
| 15 | WH01X29219 | Power Button |
|
- | |||||
| 16 | WE22X29236 | Control Panel |
|
- | |||||
| 17 | WH02X26247 | Screw |
|
$ 1.71 | |||||
| 71 | WH22X29227 | Wifi Board |
|
- | |||||
| 78 | WH08X29226 | Power Button Jumper Harness |
|
- | |||||
| 91 | WH02X26236 | Screw M4*10 |
|
- | |||||
| 999 | 31-3000194 | Pm Mini Manual And Wiring |
|
- | |||||
| 999 | 49-3000193 | Pm Owners And Install |
|
- |
