SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel

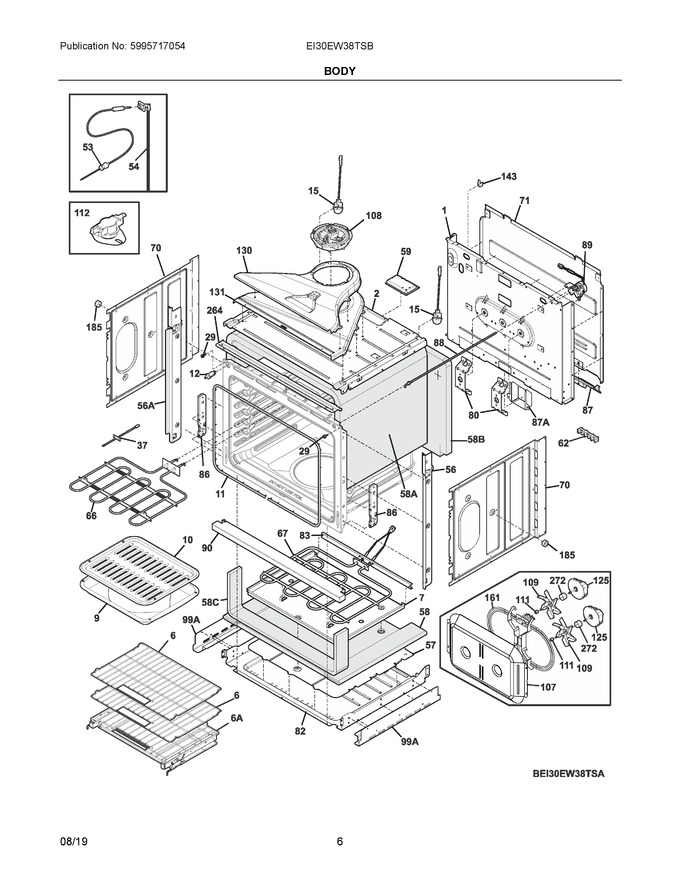

03 - Body


04 - Door


05 - Wiring Diagram


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	139035302		Panel, Main Back		Appelez-nous	-
2	808651301		Shield, Insulation, Top		Appelez-nous	-
6	5304514983		Rack, Oven, W/handle				$ 137.58
7	5304520858		Box, Bake Element   (Replaces: 808816302)				$ 141.56
9	316081901		Pan, Broiler, Cobalt Blue				$ 82.58
10	316082001		Insert, Broiler Pan, Cobalt Blue				$ 58.99
11	139036700		Seal, Oven Door			Immediately	$ 122.18
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 48.93
15	5304528790		Lamp Assembly, Round, Halogen, W/lens, W/bulb   (Replaces: 139009000)			Immediately	$ 22.84
29	316517600		Bumper, Front, Main				$ 13.39
37	5304504897		Sensor, Oven Temp Probe			Immediately	$ 53.48
53	5304503737		Probe, Meat, Black   (Replaces: 5304516490)				$ 110.37
54	139017203		Receptacle Assy, Meat Probe   (Replaces: 5304514886)			Immediately	$ 170.10
56	5304521620		Trim, Side, Black, Rh				$ 45.68
57	808109502		Shield, Air Wash, Lower		Appelez-nous	-
58	808816501		Insulation, Bottom		Appelez-nous	-
59	808931401		Vent Box Assy., W/catalyst				$ 147.26
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 29.66
66	5304521861		Element, Broil, 8 Pass, 4000w   (Replaces: 139000900)			Immediately	$ 100.28
67	5304516286		Element, Hidden Bake, 2200w			Immediately	$ 121.34
70	139000601		Shield, Insulation, Sides, (2)				$ 80.05
71	808650301		Shield, Rear Wall		Appelez-nous	-
80	139021101		Bracket, Support, Chassis/fan				$ 16.54
82	808108901		Shield, Insulation, Lower		Appelez-nous	-
83	808816401		Shield, Bake Tray, Rear		Appelez-nous	-
86	139026900		Receptacle, Hinge, Dual Spring				$ 36.23
87	808652001		Bracket, Cable Box		Appelez-nous	-
88	808721601		Rod, Door Latch				$ 59.83
89	808721802		Motor Assy., Door Latch				$ 77.70
90	808109405		Trim, Vent, Stainless, Lower				$ 149.63
107	5304507922		Cover, Convection Fan, Cobalt, Dual		Appelez-nous	-
108	5304528825		Motor Assembly, Fan   (Replaces: 807123001)			Immediately	$ 198.11
109	318398302		Blade, Fan, Convection   (Replaces: 139009100)			Immediately	$ 32.34
111	316136600		Nut, Fan Retainer			Immediately	$ 21.26
112	5304538823		Thermostat, Safety, 125c   (Replaces: 318578509)			Immediately	$ 16.36
125	139008504		Motor, Convection Fan, 2 Speed			Immediately	$ 189.52
130	808651606		Duct, Cooling Fan, Upper   (Replaces: 808651603)			Immediately	$ 163.47
131	808651702		Duct, Cool Fan, Lower				$ 128.08
143	318172904		Bracket, Wire Support		Appelez-nous	-
161	5304500622		Element, Convection, Dual, 3400w				$ 181.17
185	318531800		Spacer, Oven Shield, (2)				$ 14.18
264	5304500596		Trim, Vent, Black, Upper				$ 54.34
272	139021700		Tube, Convection Fan				$ 19.69
56A	5304521622		Trim, Side, Black, Lh				$ 48.88
58A	808905501		Insulation, Oven Wrapper		Appelez-nous	-
58B	808905101		Insulation, Oven Back		Appelez-nous	-
58C	807887503		Insulation, Bake Element, Front		Appelez-nous	-
6A	5304518864		Rack Assembly, Gliding, Nickel, W/handle			Immediately	$ 368.22
87A	808652101		Shield, Terminals, Bake Element		Appelez-nous	-
99A	5304514974		Support, Floor		Appelez-nous	-
NI	807597603		Screw, Self Tapping, 8-18 X 11/32, (4)				$ 10.24
NI	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 6.30
NI	5304470882		Screw, Anti-tip, 8 - 5/8, Black, (2)				$ 14.96
NI	318165800		Spacer, Glass, Foam				$ 19.69
NI	5303324184		Screw, 8-18 X 5/16, Black			Immediately	$ 15.75
NI	5304506984		Harness Assembly, Conduit, Elbow Connector, & Wiring				$ 166.85
NI	5304516303		Harness, Wiring, Main				$ 177.80
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	5304514911		Harness, Wiring, Ads Mdl				$ 45.51
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 30.55
NIA	318946500		Bulb, Halogen, G9, 25w, 120v			Immediately	$ 67.15
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 15.75
NIA	318167300		Clip, Rod				$ 3.15
NIA	318579001		Bracket, Wire				$ 11.08
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.37
NIB	5303311164		Spring				$ 21.06
NIB	316205500		Nut, Hex Flange, 3/8 10-32				$ 12.60

    View Diagram in Separate Window       Print Part List
