New Model Search:

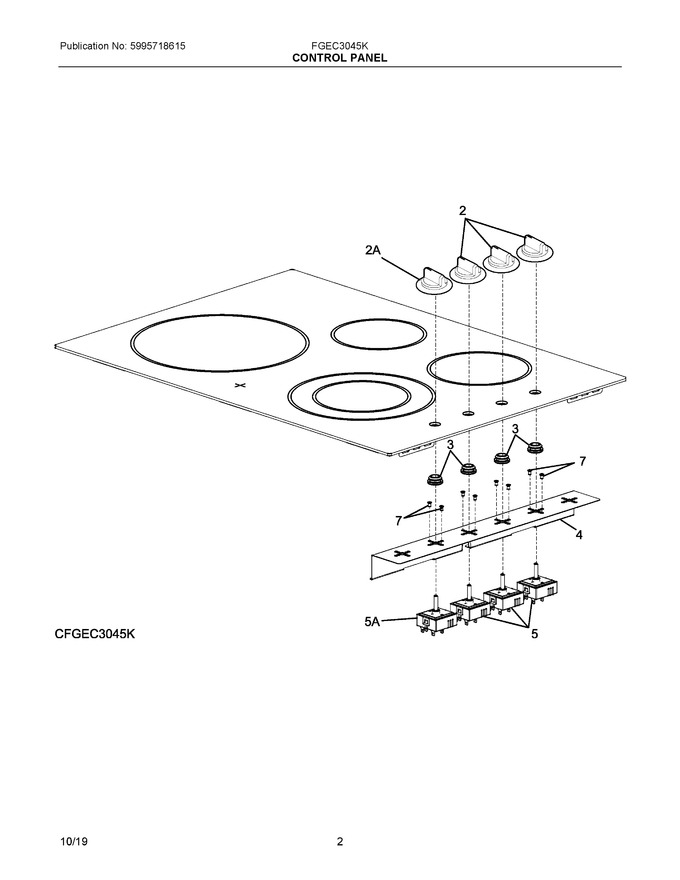

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 316545117 | Knob, Control, White, Single |
|
$ 54.77 | |||||
| 3 | 387316100 | Bushing, Knob, Sealing |
|
$ 14.96 | |||||
| 4 | 387559700 | Bracket, Support, Switch Mtg. |
|
- | |||||
| 5 | 5304526190 | Switch, Infinite, Single Control (Replaces: 305458905) |
|
Immediately | $ 100.56 | ||||
| 7 | 5304536454 | Screw, Switch Mtg., M4 X 7 (Replaces: 319224001) |
|
$ 3.31 | |||||
| 2A | 316545115 | Knob, Control, White, Dual |
|
$ 41.63 | |||||
| 5A | 903097-9040 | Switch, Surface Element, Dual (Replaces: 318191001) |
|
Immediately | $ 100.92 |
