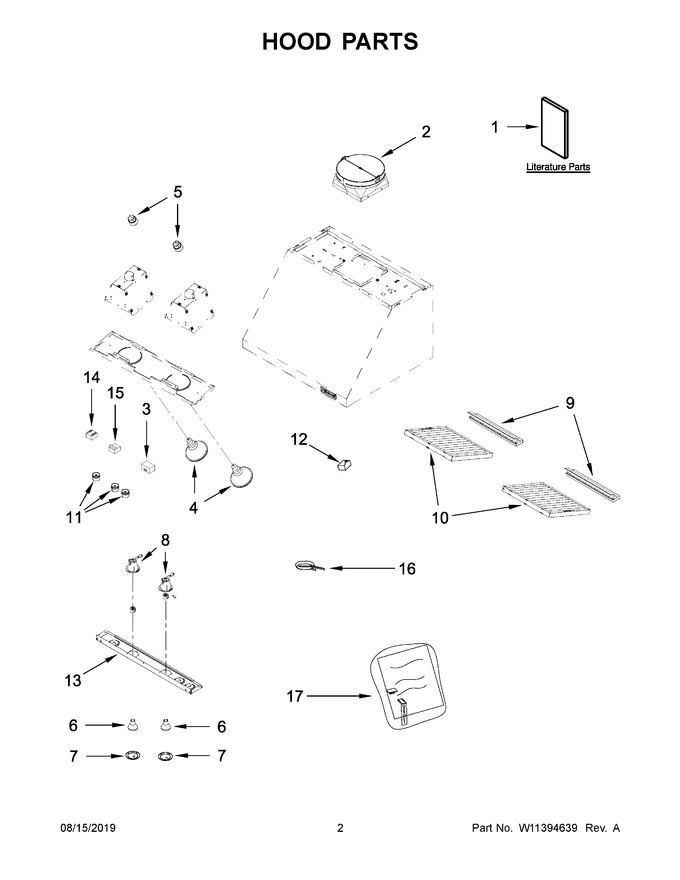

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11374531		Owners Manual		Appelez-nous	-
2	W11156393		Assembly, Damper				$ 214.28
3	W10293967		Switch, Fan				$ 136.67
4	WPW10294005		Lamp, Ir   (Replaces: W10294005)			Immediately	$ 296.71
5	W10294008		Socket, Ir Lamp				$ 84.36
6	W11800238		Lamp, Led   (Replaces: W11388445)			Immediately	$ 87.63
7	W10351924		Bezel, Lamp				$ 197.59
8	W10295808		Socket, Light			Immediately	$ 110.92
9	W10294003		Grease Tray (30" Model Only)				$ 332.94
10	W10351890		Grease Filter (30" Model Only)				$ 117.92
11	WPW10294009		Knob   (Replaces: W10294009)				$ 72.22
12	W11715950		Capacitor (25 Mf)   (Replaces: W11245979)			Immediately	$ 101.70
13	W10295804		Control Panel (30" Model Only)		Appelez-nous	-
14	W10293976		Switch, Ir Lamp			Immediately	$ 138.31
15	W10293968		Switch, Light				$ 128.15
16	W10427011		Filter, Noise		Appelez-nous	-
17	W10293977		Hardware, Installation				$ 58.23
10A	W10351892		Grease Filter (36" Model Only)				$ 269.64
10B	WPW10351929		Grease Filter (48" Model Only)   (Replaces: W10351929)				$ 209.91
13A	W10295807		Control Panel (36" Model Only)		Appelez-nous	-
13B	W10293971		Control Panel (48" Model Only)			Immediately	$ 228.49
9A	W10294011		Grease Tray (36" Model Only)				$ 319.82
9B	W10294022		Grease Tray (48" Model Only)				$ 353.88
NI	W10285448		Accessories, Kit, Backsplash 36" With Shelves			Immediately	$ 463.93
NI	W10285449		Accessories, Kit, Backsplash 48" With Shelves				$ 525.67
NI	W10285447		Accessories, Kit, Backsplash 30" With Shelves				$ 498.30
