01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)

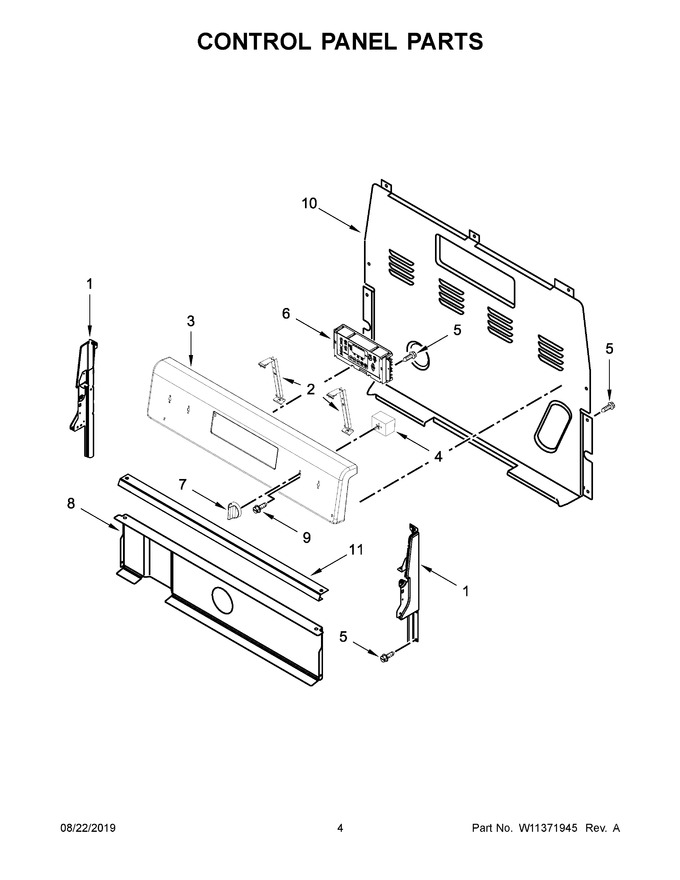

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219664		Endcap (black (left))   (Replaces: W11130372)				$ 153.83
2	W11230932		Bracket, Control   (Replaces: W10695491)			Immediately	$ 84.81
3	W11175518		Console, Assembly (stainless)   (Replaces: W11027373)			Immediately	$ 481.91
4	WPW10434452		Switch, Infinite (dual) (left Front)   (Replaces: W10434452)			Immediately	$ 140.84
5	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
6	W11567368		Control, Electronic (lcx) (black)   (Replaces: W11204517)			Immediately	$ 336.56
7	W11158169		Knob (black)   (Replaces: W11022718)			Immediately	$ 80.02
8	W10134247		Shield, Heat			Immediately	$ 358.82
9	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 219.04
11	W10525121		Bracket, Console Mounting				$ 98.85
1A	W11219665		Endcap (black (right))   (Replaces: W11130379)				$ 45.17
3A	W11372362		Console, Assembly (black Stainless)   (Replaces: W11344485)		Appelez-nous	-
4A	5500-287		Switch, Infinite (left Rear And Right Rear)   (Replaces: 3148951)			Immediately	$ 52.39
4B	WP3149400		Switch, Infinite (orange) (right Front)   (Replaces: 3148954)			Immediately	$ 90.51

    View Diagram in Separate Window       Print Part List
