01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:

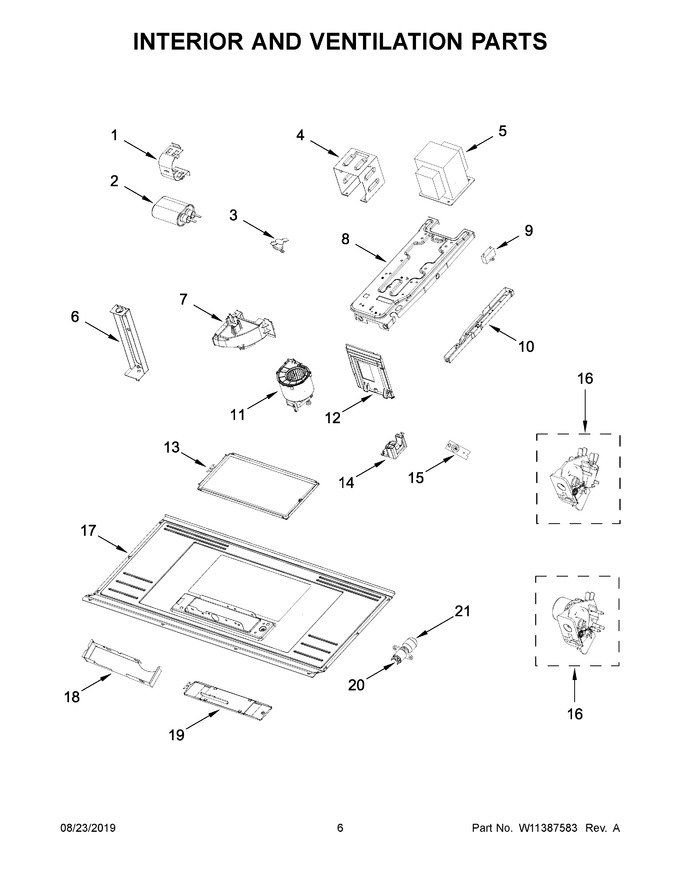

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10633730 | Bracket, Capacitor |
|
- | |||||
| 2 | 8206562 | Capacitor, High Voltage |
|
Immediately | $ 204.20 | ||||
| 3 | W10864742 | Thermostat, Cavity 125/-35 Celcius |
|
$ 88.67 | |||||
| 4 | W10556824 | Housing, Damper |
|
- | |||||
| 5 | W11371266 | Transformer, High Voltage |
|
$ 371.86 | |||||
| 6 | W10540715 | Bracket, Top Cavity |
|
$ 28.92 | |||||
| 7 | W10631700 | Air Guide, Magnetron (Replaces: W10533105) |
|
$ 47.06 | |||||
| 8 | W11350925 | Chassis, Component |
|
$ 129.65 | |||||
| 9 | W11405832 | Capacitor, Hood Motor (Replaces: W10605896) |
|
$ 28.60 | |||||
| 10 | W10540718 | Bracket, Cavity |
|
$ 32.61 | |||||
| 11 | W11371514 | Assembly, Cooling Fan |
|
- | |||||
| 12 | W11316476 | Deflector, Air |
|
$ 77.39 | |||||
| 13 | W11383755 | Filter, Grease (Replaces: W11371546) |
|
Immediately | $ 16.82 | ||||
| 14 | W10533480 | Holder, Ntc |
|
$ 24.77 | |||||
| 15 | W10536989 | Thermistor, Pcba |
|
Immediately | $ 38.68 | ||||
| 16 | W11197766 | Assembly, Interlock (includes Switches) (Replaces: W11187757) |
|
Immediately | $ 36.80 | ||||
| 17 | W11294935 | Plate, Bottom |
|
Immediately | $ 135.22 | ||||
| 18 | W11361503 | Reflector, Lamp |
|
- | |||||
| 19 | W11294927 | Holder, Bottom Lamp |
|
- | |||||
| 20 | W10210871 | Holder, Lamp |
|
Immediately | $ 7.57 | ||||
| 21 | 8206232A | Lamp, 40 Watt (Replaces: 8206232) |
|
Immediately | $ 7.71 |
